Air supply unit

FRONT SUSPENSION

60-22

REPAIRS

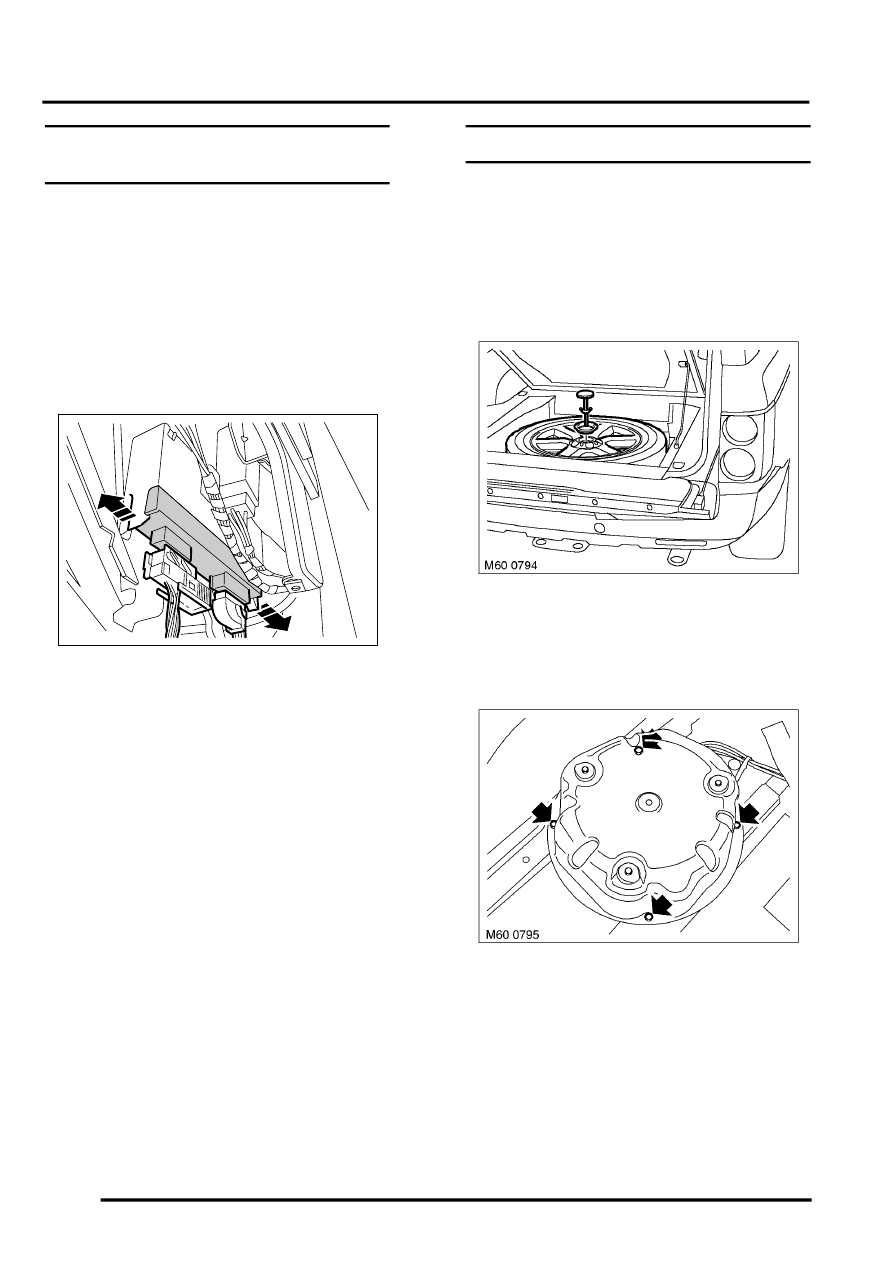

Electronic Control Unit (ECU) - air
suspension

$% 60.50.04

If the ECU is to be replaced then Testbook/T4 must
be connected and correct procedures adhered to,
prior to battery disconnection.

Remove

1. Remove passenger's side lower fascia finisher.

 +

 INTERIOR FITTINGS, REPAIRS,

Finisher - lower - passengers side.

2. Release 2 clips and withdraw ECU from holder.
3. Disconnect 2 multiplugs from ECU.
4. Remove ECU.

Refit

1. Position new ECU, connect multiplugs and

secure ECU in holder.

2. Fit passenger's side fascia lower finisher.

 +

 INTERIOR FITTINGS, REPAIRS,

Finisher - lower - passengers side.

3. Use TestBook/T4 to re-calibrate system.

 +

 FRONT SUSPENSION,

ADJUSTMENTS, Calibrate - air suspension.

Air supply unit

$% 60.50.10

There is no need to depressurise the suspension in
this procedure.

Remove

1. Remove spare wheel cover.

2. Release wing nut securing spare wheel to

compressor housing, remove bolt and collect
cup.

3. Remove spare wheel.

4. Remove 4 bolts securing air supply unit to

body.

M60 0812
