Handle - outside - front door

DOORS

76-1-20 REPAIRS

Handle - outside - front door

$% 76.58.07

This procedure is also applicable to the rear door
handle.

Remove

1. Remove plastic sheet.

 +

 DOORS, REPAIRS, Plastic sheet -

front door.


 +

 DOORS, REPAIRS, Plastic sheet -

rear door.

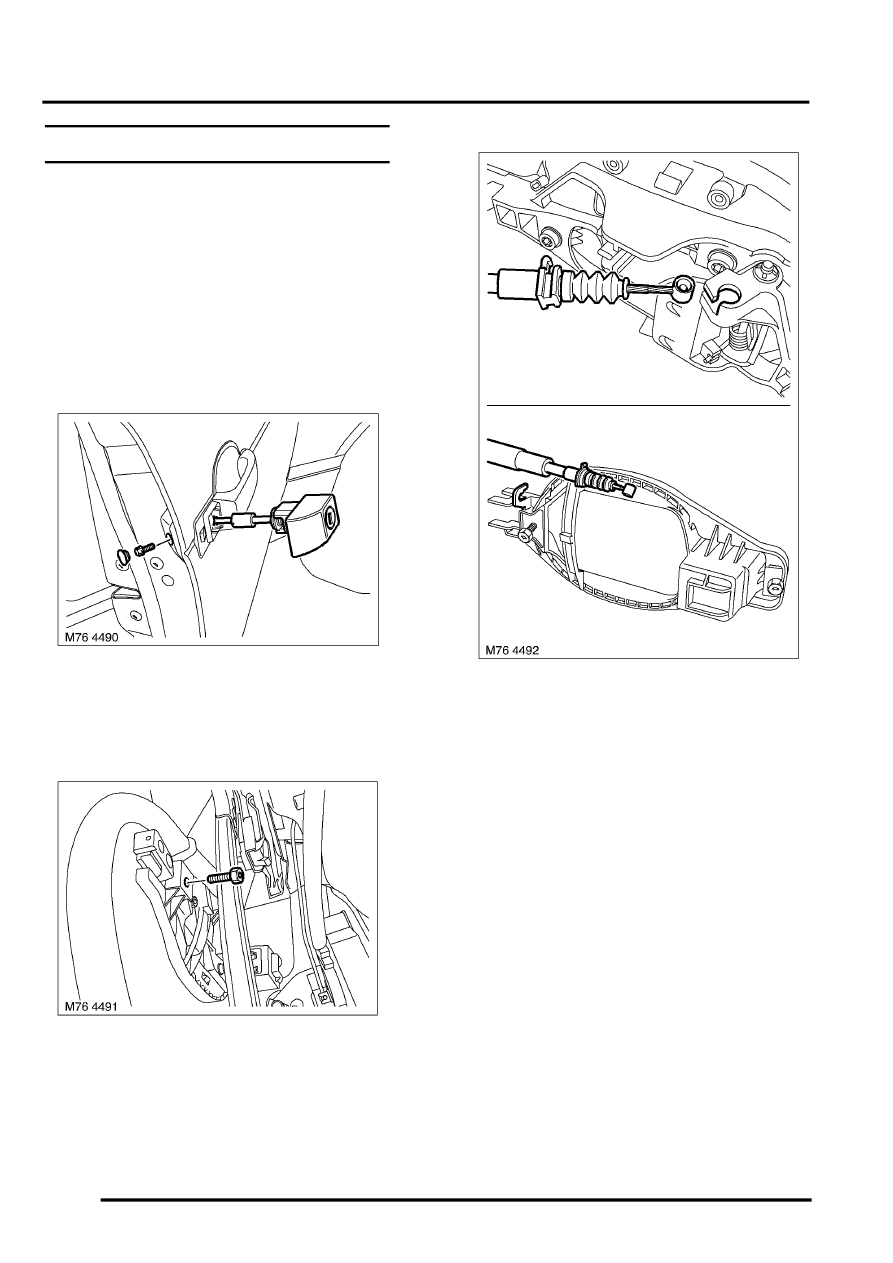

2. Drivers door: Remove grommet for access to

lock retaining screw.

3. Drivers door: Remove Torx screw securing

lock and remove lock assembly.

4. Remove Torx screw securing door handle

assembly.

5. Release handle assembly from door.

6. Disconnect release cable from handle

assembly.

7. Remove door handle.
8. Release cable from clip and collect

reinforcement.

Refit

1. Connect latch release cable to door handle.
2. Position inner reinforcement to door.
3. Locate cable to inner reinforcement and secure

in clip.

4. Position handle to door align and lightly tighten

securing screw.

5. Drivers door: Position door lock, fit and lightly

tighten Torx screw.

6. Check alignment and tighten Torx bolts to 10

Nm (7 lbf.ft).

7. Check operation of handle and lock.
8. Fit grommet to door.
9. Fit plastic sheet.

 +

 DOORS, REPAIRS, Plastic sheet -

front door.


 +

 DOORS, REPAIRS, Plastic sheet -

rear door.
