Gasket - cylinder head - RH (page 2 of 4)

ENGINE - V8

12-2-10 REPAIRS

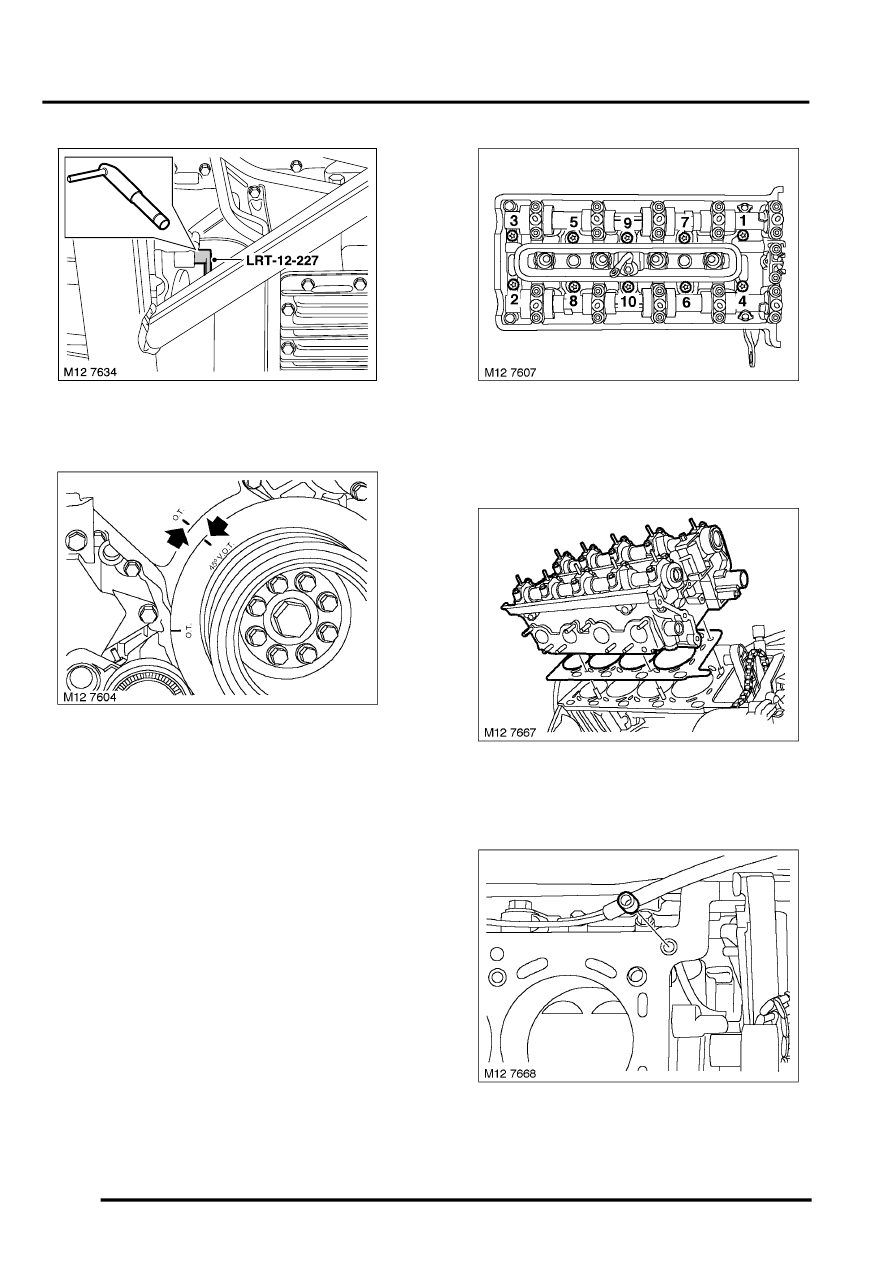

9. Remove LRT-12-227 from timing tool access

hole.

10. Rotate engine crankshaft pulley anti-clockwise

to align the 45

°

 before TDC timing mark.

NOTE: Raise timing chain and hold under
tension while turning crankshaft pulley.

11. Remove LRT-12-223/5, LRT-12-223/6, LRT-

12-223/2 and LRT-12-223/1 from RH cylinder
head camshafts.

12. Working in the sequence shown, progressively

loosen 10 cylinder head bolts.

13. Discard 10 cylinder head bolts and remove 10

cylinder head bolt washers.

14. With assistance, remove cylinder head

assembly.

15. Discard cylinder head gasket.

16. Discard 'O' ring from cylinder block.
