Engine mounting - RH

ENGINE - V8

REPAIRS 12-2-51

Engine mounting - RH

$% 12.45.12

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

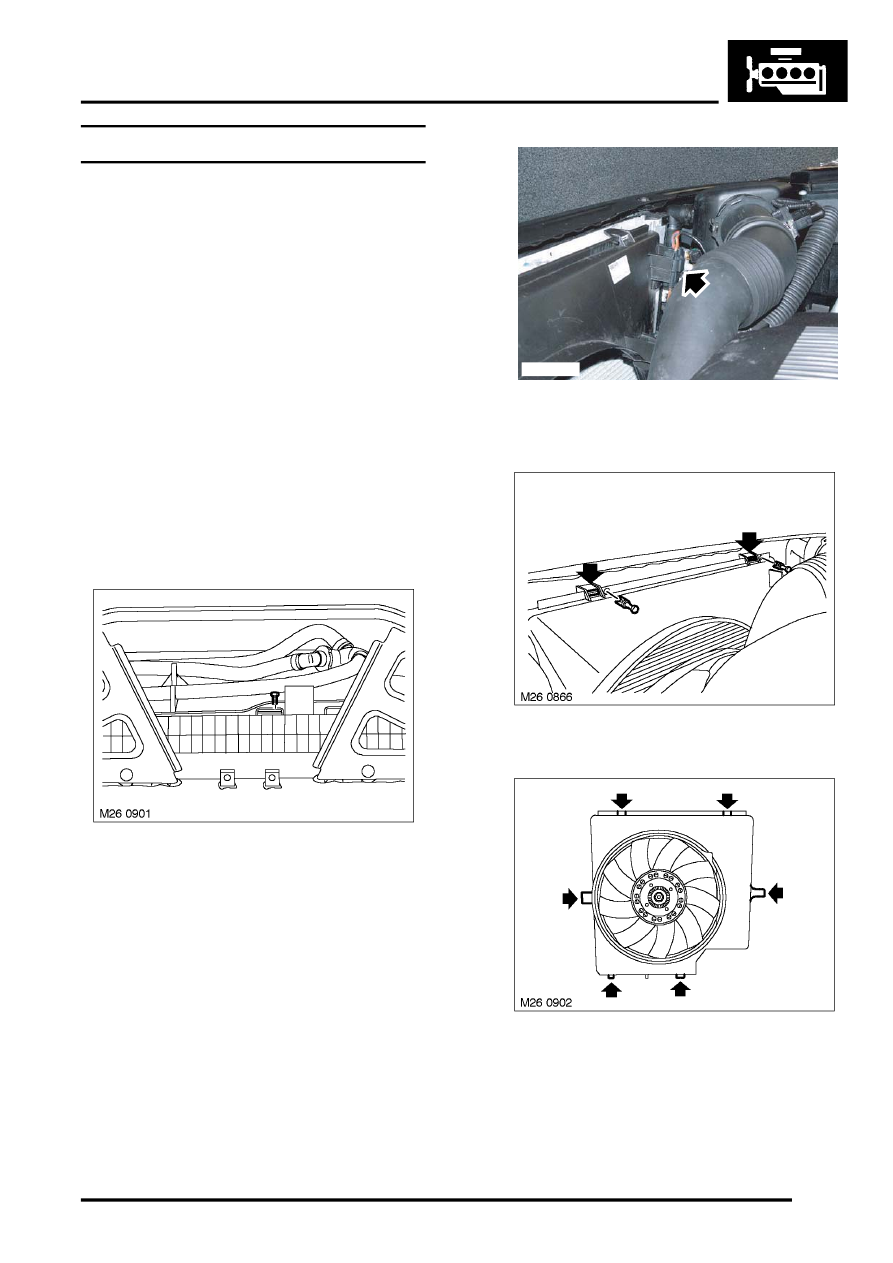

Remove

1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove air intake plenum.

 +

 HEATING AND VENTILATION,

REPAIRS, Plenum - air intake.

4. Remove air intake hose.

 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Hose - air flow meter to
throttle body.

5. Remove undertray.

 +

 EXTERIOR FITTINGS, REPAIRS,

Undertray - front.

6. Remove screw securing fan cowl to radiator.

7. Release auxiliary cooling fan multiplug from fan

cowl.

8. Remove scrivets securing fan cowl.

9. Release fan cowl from radiator.

M26 0865
