Valve - vacuum activation - secondary air injection (SAI)

EMISSION CONTROL - V8

REPAIRS

17-2-5

Valve - vacuum activation - secondary air
injection (SAI)

$% 17.25.02

This procedure is also applicable to the gasket.

Before disconnecting the battery, ensure all text and
cautions in the battery disconnection section are
observed.


 +

 GENERAL INFORMATION, Electrical

Precautions.

Remove

1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove air intake hose.



 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Hose - air flow meter to
throttle body.

4. Drain cooling system.



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Coolant - drain, flush &
refill.

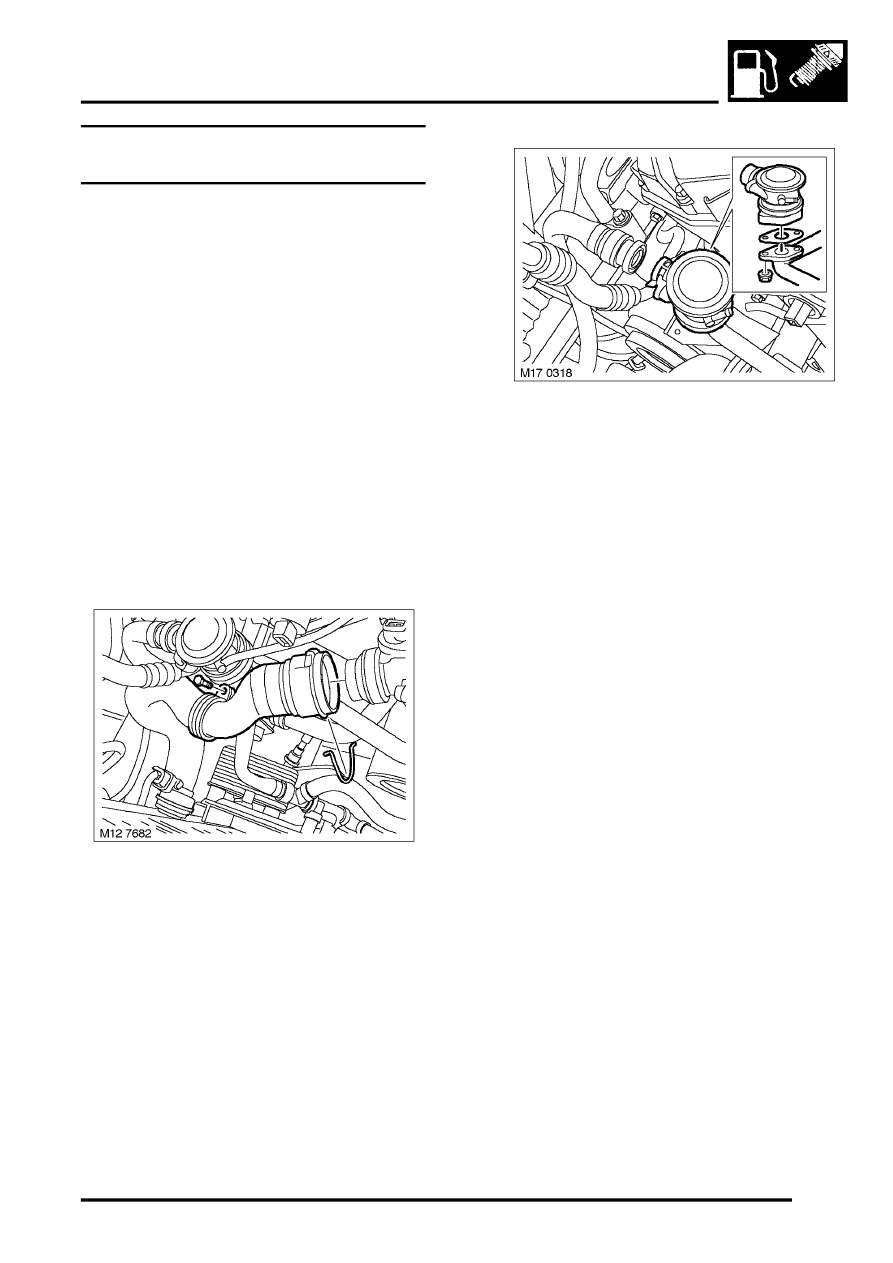

5. Release clip, disconnect radiator bottom hose

from thermostat housing and remove bolt
securing 'P' clip.

6. Disconnect vacuum pipe and pressure pipe

from vacuum activation valve.

7. Remove 2 nuts, remove vacuum activation

valve and discard gasket.

Refit

1. Clean SAI pipe and vacuum activation valve

mating faces.

2. Fit new gasket to SAI pipe.
3. Fit vacuum activation valve to SAI pipe. Fit and

tighten 2 nuts.

4. Fit vacuum pipe and pressure pipe to vacuum

activation valve.

5. Connect radiator bottom hose to thermostat

housing and secure with clip.

6. Fill cooling system.



 +

 COOLING SYSTEM - V8,

ADJUSTMENTS, Coolant - drain, flush &
refill.

7. Connect air intake hose.



 +

 ENGINE MANAGEMENT SYSTEM -

V8, REPAIRS, Hose - air flow meter to
throttle body.

8. Connect battery earth lead.
