Seal - drive shaft - front - RH (page 3 of 4)

DRIVESHAFTS

47-12

REPAIRS

13. Using LRT-54-027 release tie rod from ball joint

Caution: ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.

14. Remove and discard nut securing track rod ball

joint to steering arm.

15. Fit an m14 nut to ball pin, flush with end of pin.
16. Using LRT-57-036 separate ball pin from

steering arm. Remove m14 nut and release ball
pin from steering arm.

Caution: ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.

17. Position container to collect oil spillage.

18. Fit LRT-54-026 to drive shaft inboard joint.
19. Using  levers, release drive shaft from

differential.

20. Remove 2 nuts and bolts securing hub to

damper.

21. With assistance, remove hub and drive shaft

assembly.

22. Remove and discard shaft retaining clip.
23. Carefully remove and discard oil seal.

Refit

1. Clean oil seal register.

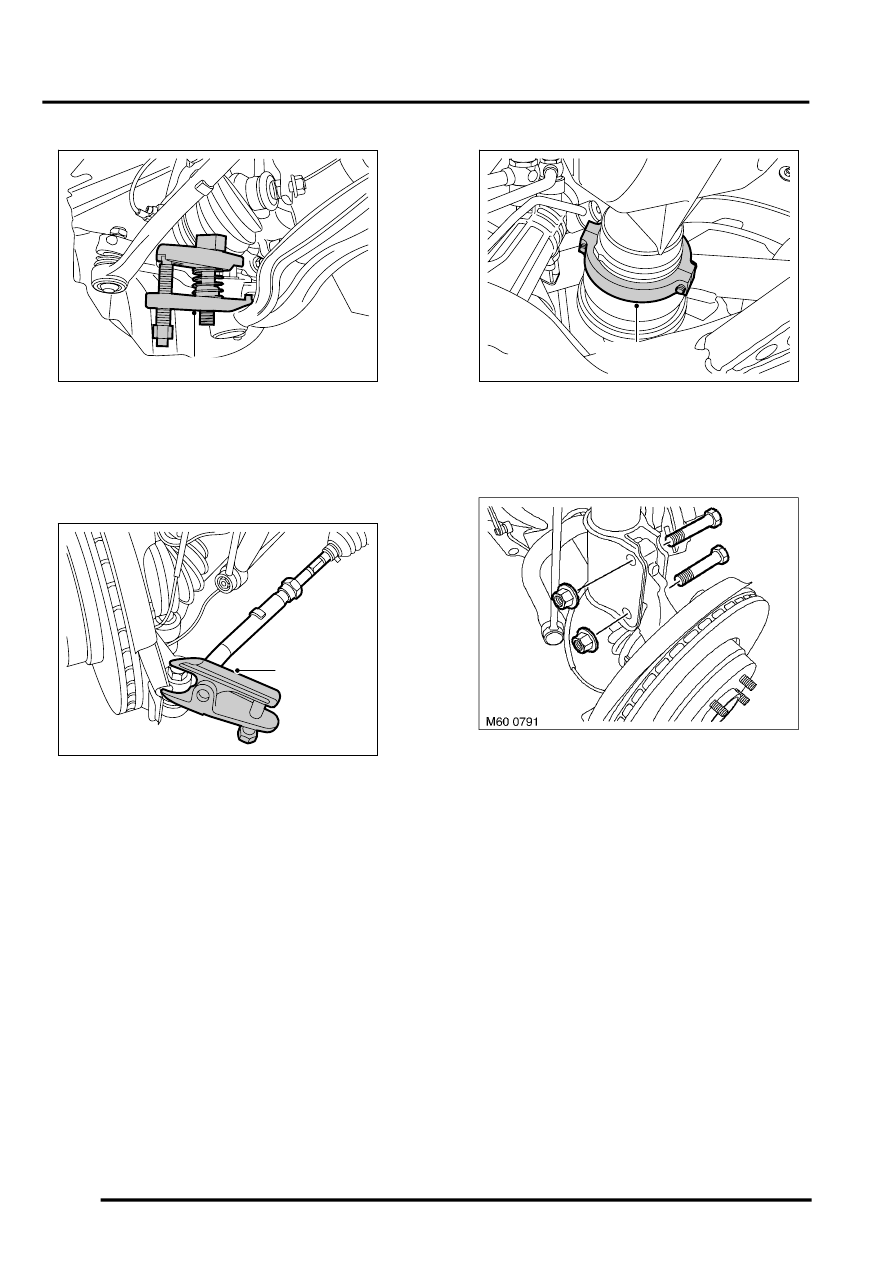

M60 0789

LRT -54-027

M47 0418

LRT-57-036

M47 0414

LRT-54-026
