Propeller shaft - rear

DRIVESHAFTS

REPAIRS

47-21

Propeller shaft - rear

$% 47.15.03

Remove

1. Position vehicle on lift.
2. Disconnect battery earth lead.
3. Remove exhaust system.

 +

 MANIFOLD AND EXHAUST SYSTEM

- V8, REPAIRS, Exhaust system &
mountings.


 +

 MANIFOLD AND EXHAUST SYSTEM

- Td6, REPAIR, Exhaust system and
mountings.

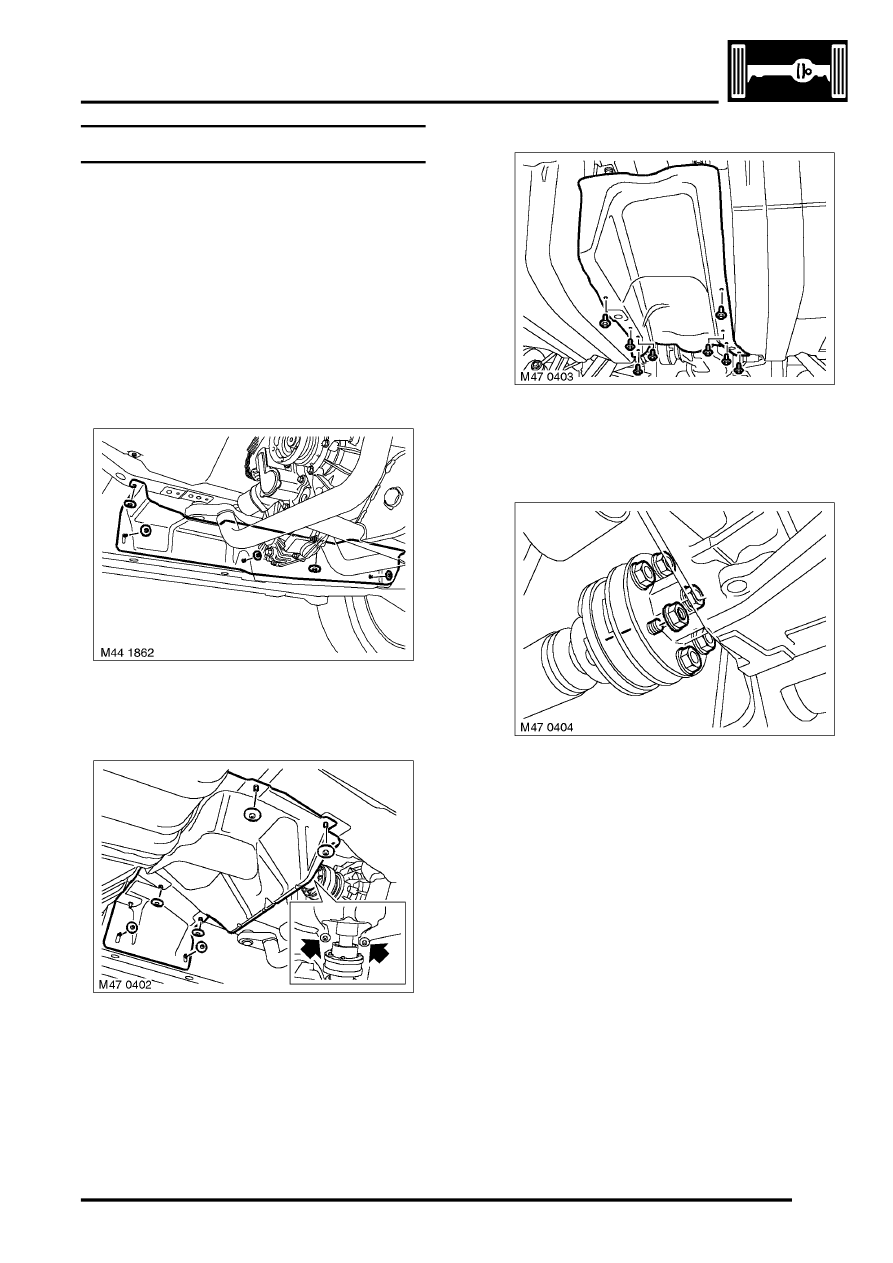

4. Petrol models only: Remove 5 nuts securing

LH heat shield. Remove heat shield.

5. Remove 8 nuts securing centre heat shield and

remove shield.

6. Remove 8 hexagonal headed screws securing

fuel tank heat shield and remove shield.

7. Raise vehicle to allow propeller shaft to rotate.

8. Reference mark rear propeller shaft for

reassembly.

9. Remove 6 nuts securing propeller shaft to

differential flange.

10. Release joint from differential flange and

support the shaft.

CAUTION: To avoid damage to gaiter or
joint, do not allow shaft to hang on joint.
