Gaiter - inner joint

DRIVESHAFTSGaiter - inner joint

DRIVESHAFTS

REPAIRS

47-9

Refit

1. Clean drive shaft.
2. Fit new gaiter to shaft.
3. Fit new circlip to drive shaft.
4. Position outer joint to shaft, use a screwdriver

to press circlip into its groove and push joint
fully onto shaft.

5. Apply grease from the sachet to the joint.
6. Position gaiter to joint and secure to joint and

shaft with new clips.

7. Fit drive shaft.

Gaiter - inner joint

$% 47.10.16

Remove

1. Remove drive shaft.

2. Release and discard both drive shaft gaiter

clips.

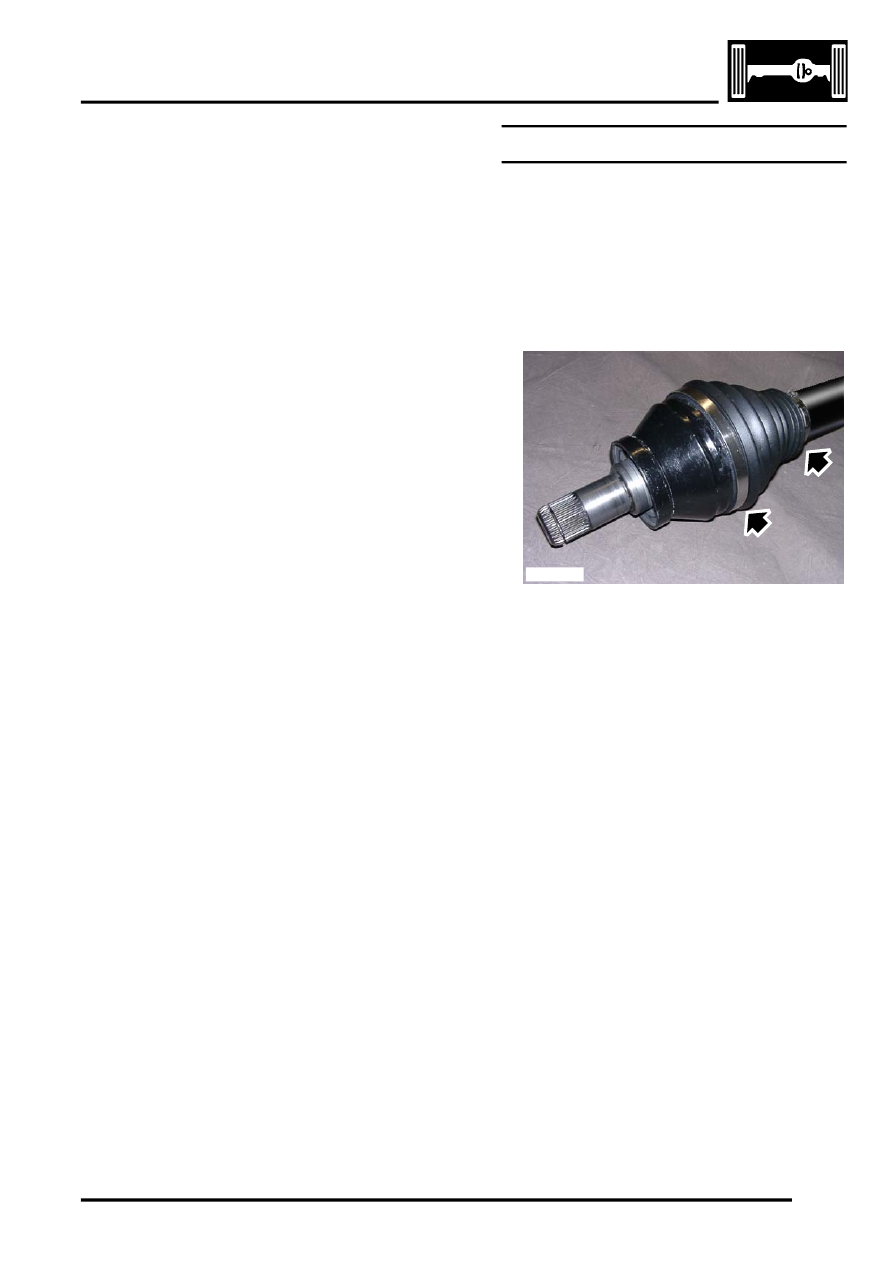

LH drive shaft illustrated.

M47 0421
