Gaiter - bell & joint - outer - front

DRIVESHAFTS

47-8

REPAIRS

28. Tighten bolt securing lower arm to subframe to

165 Nm (121 lbf.ft), plus a further 90

°

.

CAUTION: Nuts and bolts must be tightened
with vehicle at normal ride height.

29. Tighten bolt securing tie rod to subframe to 165

Nm (121 lbf.ft), plus a further 90

°

.

30. Top-up differential with oil.

 +

 FRONT DIFFERENTIAL,

ADJUSTMENTS, Front differential - drain
and refill.

31. Check front wheel alignment.

 +

 STEERING, ADJUSTMENTS, Front

wheel alignment - check & adjust.

Gaiter - bell & joint - outer - front

$% 47.10.03

Remove

1. Remove drive shaft.

 +

 DRIVESHAFTS, REPAIRS, Drive

shaft - front - LH.


 +

 DRIVESHAFTS, REPAIRS, Drive

shaft - front - RH.

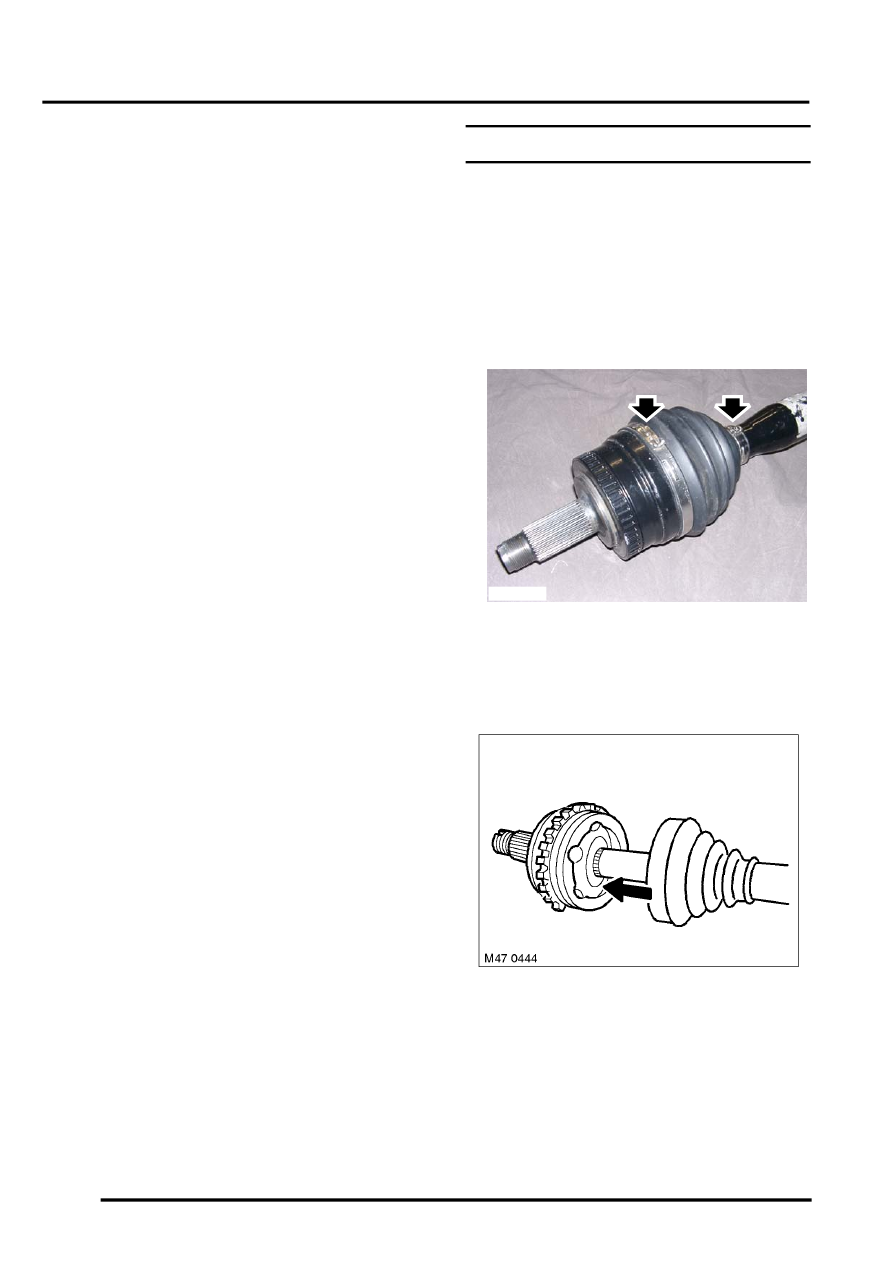

2. Place drive shaft in vice.

3. Release and discard both drive shaft gaiter

clips.

4. Slide gaiter along shaft to gain access to outer

joint.

5. Using a drift against the inner part of the joint,

remove joint from shaft.

6. Remove circlip from shaft and discard.
7. Remove gaiter from shaft.

M47 0422
