Drive shaft - front - RH (page 3 of 4)

DRIVESHAFTS

47-6

REPAIRS

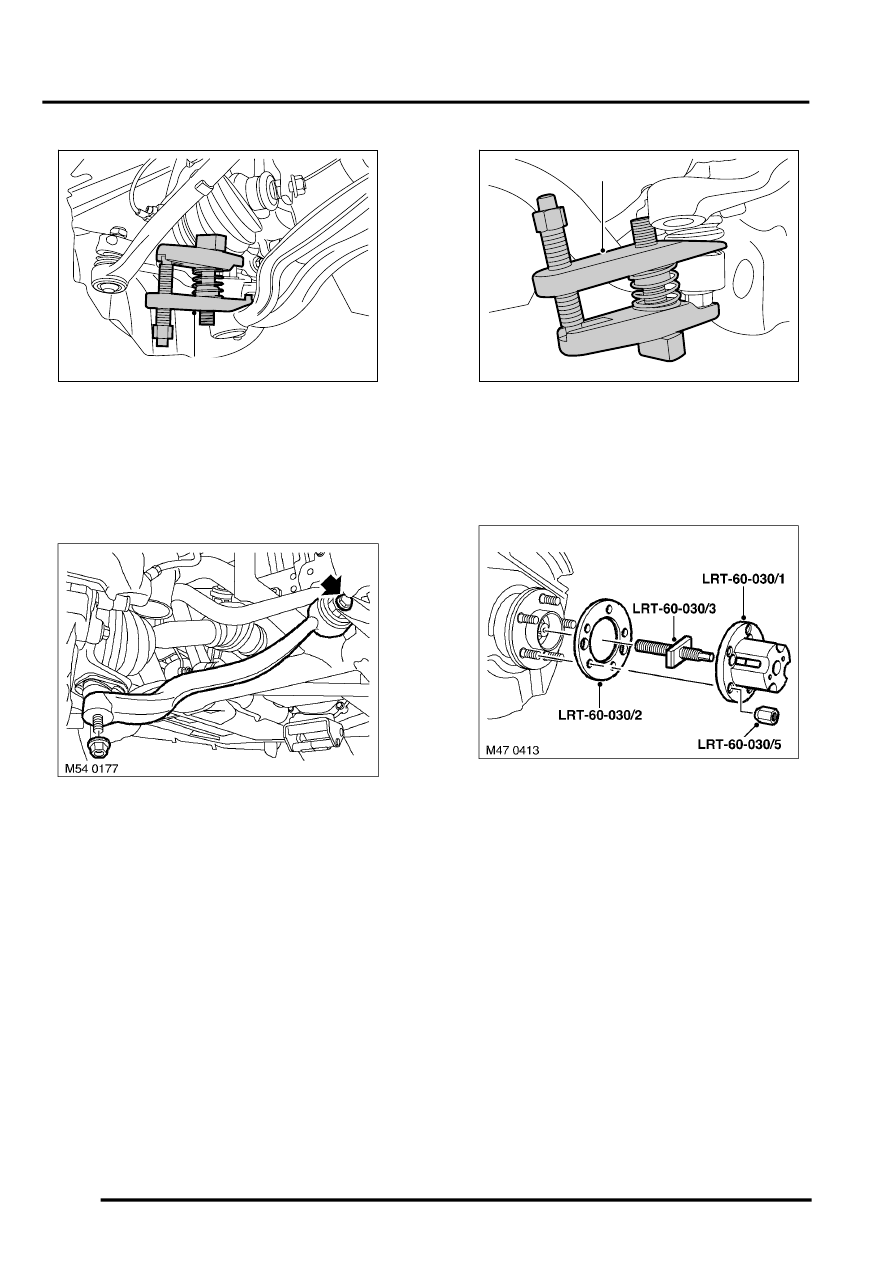

15. Using LRT-54-027 release lower arm ball joint

and disconnect lower arm from hub.

CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.

16. Loosen bolt securing tie rod to subframe one

quarter of a turn.

17. Remove nut securing tie rod to ball joint.

18. Using LRT-54-027 release tie rod from ball joint

CAUTION: Ensure ball joint seal is not
damaged. A damaged seal will lead to
premature failure of the joint.

19. Fit centre screw LRT-60-030/3 to LRT-60-030/

1 and fit to hub with spacer LRT-60-030/2.
Secure with nuts LRT-60-030/5.

20. Tighten centre screw to press drive shaft from

flange.

21. Remove tools.
22. Position container to collect oil spillage.

M60 0789

LRT -54-027

M60 0787

LRT -54-027
