Drive shaft - front - RH

DRIVESHAFTS

47-4

REPAIRS

26. Tighten new bolt securing tie rod to subframe to

165 Nm (121 lbf.ft), plus a further 90

°

.

CAUTION: Nuts and bolts must be tightened
with vehicle at normal ride height.

27. Top-up differential with oil.

 +

 FRONT DIFFERENTIAL,

ADJUSTMENTS, Front differential - drain
and refill.

28. Check front wheel alignment.

 +

 STEERING, ADJUSTMENTS, Front

wheel alignment - check & adjust.

Drive shaft - front - RH

$% 47.10.02

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove front road wheels.

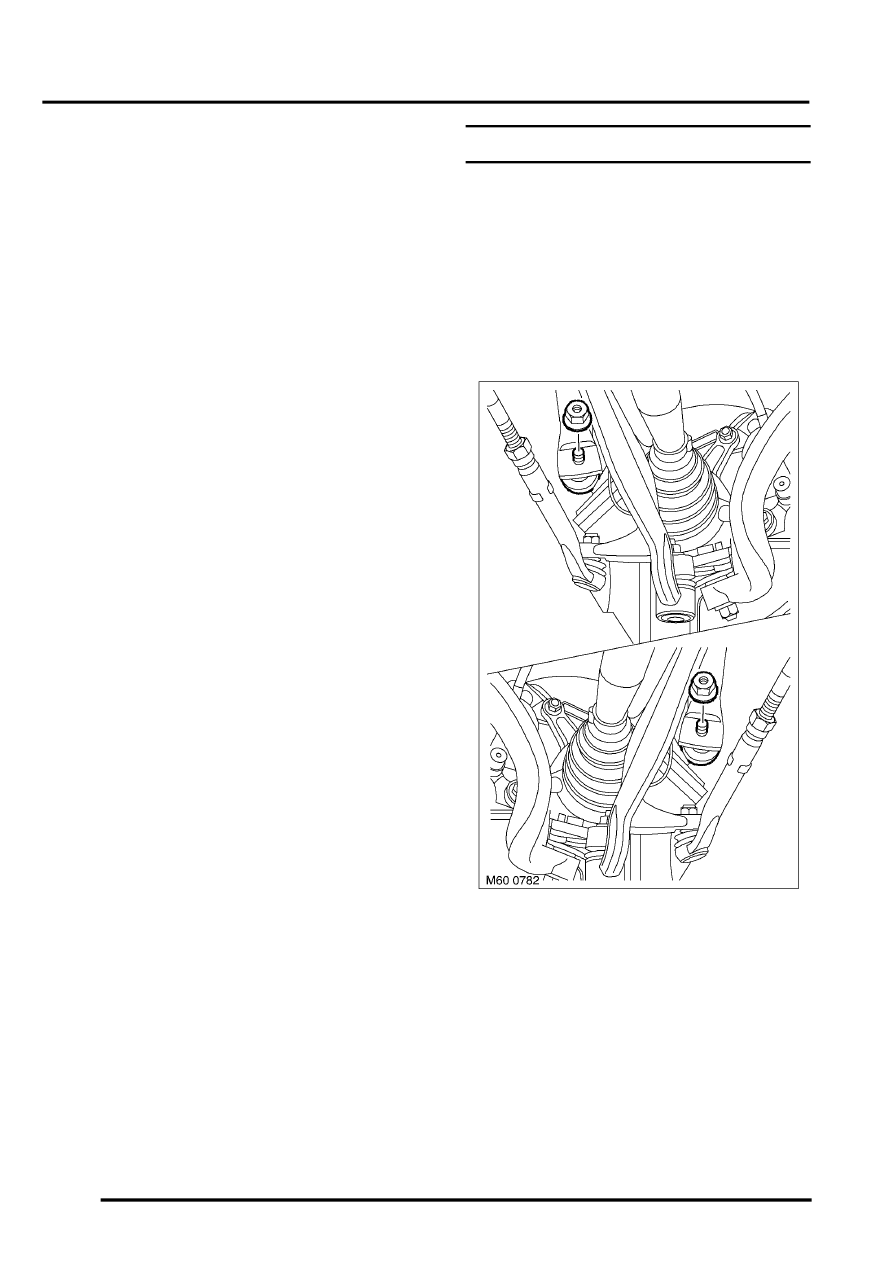

3. Remove nuts securing anti-roll bar links and

release links from anti-roll bar.

CAUTION: Use an open ended spanner on
flats provided to prevent ball joint rotating.
