Trim finisher - tailgate - upper

DOORS

REPAIRS 76-1-13

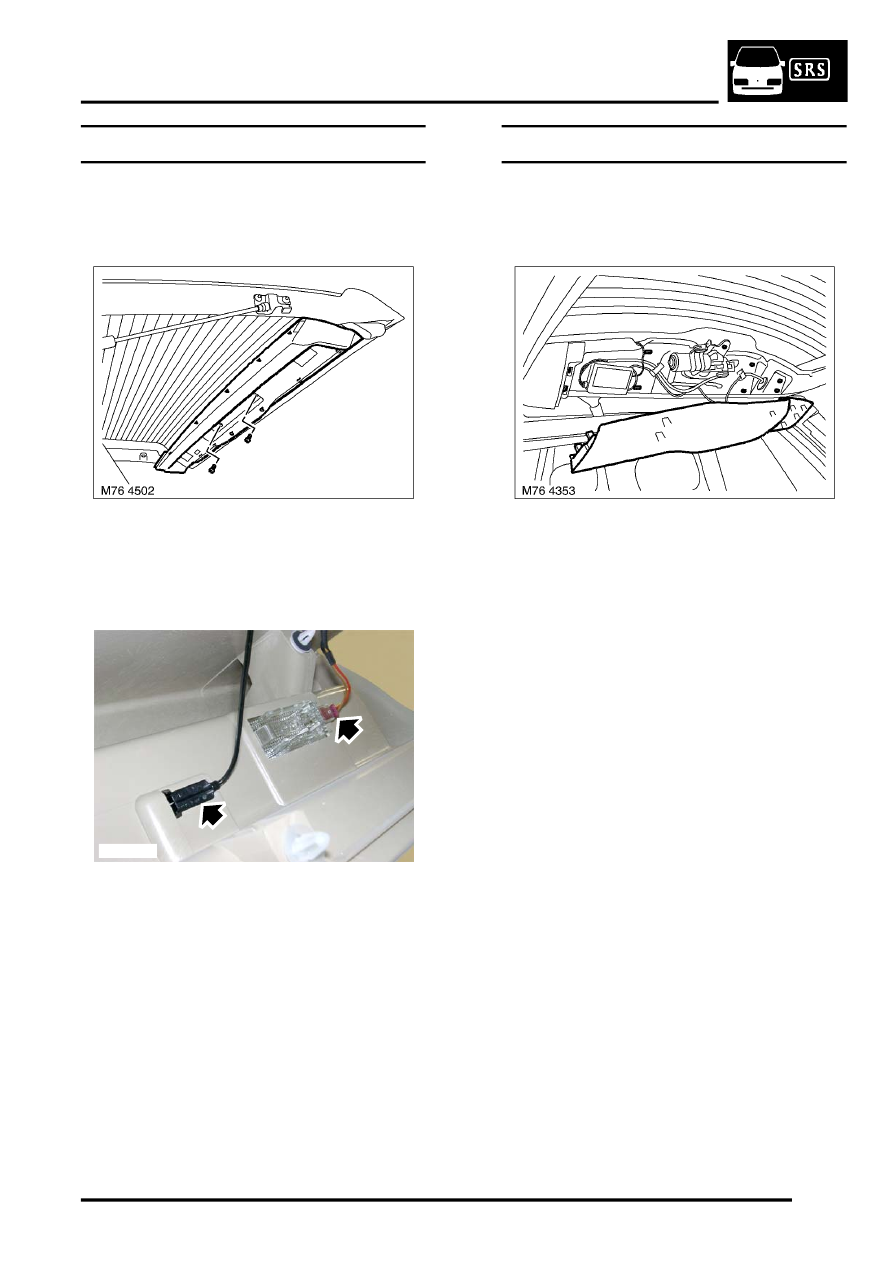

Trim casing - tailgate upper

$% 76.34.11

Remove

1. Remove 2 Torx screws securing trim casing to

upper tailgate.

2. Carefully release 11 clips securing trim casing

to tailgate.

3. Disconnect both tailgate lamp multiplugs.
4. Disconnect tailgate latch manual release cable

from trim casing.

5. Remove trim casing.

NOTE: Do not carry out further dismantling if
component is removed for access only.

6. Remove both lamps and retaining clips from

trim casing.

Refit

1. Fit lamps and clips to trim casing.
2. Connect both tailgate lamp multiplugs.
3. Connect manual release cable.
4. Fit and secure tailgate trim casing.

Trim finisher - tailgate - upper

$% 76.34.13

Remove

1. Carefully release 9 clips and remove tailgate

upper finisher.

Refit

1. Position tailgate finisher and secure to clips.

M76 4503
