Pads - front

BRAKES

70-16

REPAIRS

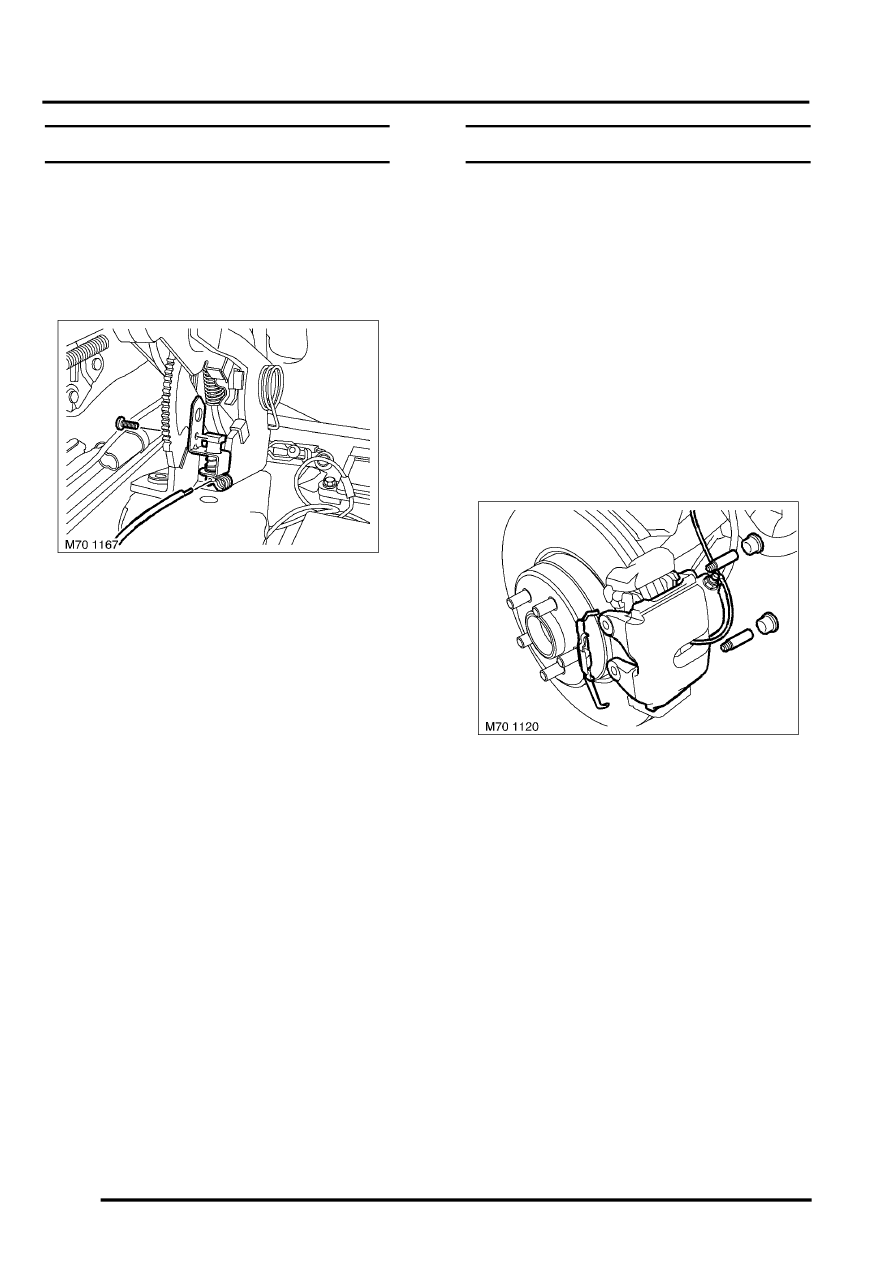

Switch - handbrake warning

$% 70.35.40

Remove

1. Remove centre console.

 +

 INTERIOR FITTINGS, REPAIRS,

Centre console.

2. Remove screw securing switch.
3. Release lead from switch.
4. Remove switch.

Refit

1. Connect lead and position switch to handbrake

lever, ensuring lug on handbrake lever locates
in hole in switch. Fit and tighten screw.

2. Fit centre console.

 +

 INTERIOR FITTINGS, REPAIRS,

Centre console.

Pads - front

$% 70.40.02

WARNING: Brake pads must be renewed in axle
sets only, otherwise braking efficiency may be
impaired. If pad wear warning light has been
activated,  pad wear sensor must be renewed.

Remove

1. Raise front of vehicle.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

2. Remove road wheels.
3. LH side only: Release pad wear sensor.

4. Remove anti-rattle spring from caliper housing.
5. Remove 2 caps from guide pin dust covers.
6. Remove 2 guide pins from caliper housing.
7. Release caliper housing from caliper carrier

and tie aside.

CAUTION: Do not allow caliper to hang on
brake hose.
