Relay Locations (page 3 of 5)
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover System Description and Operation
- Section
- Description
CHARGING AND STARTINGRelay Locations · page 3 of 5
CHARGING AND STARTING
DESCRIPTION AND OPERATION 86-1-11

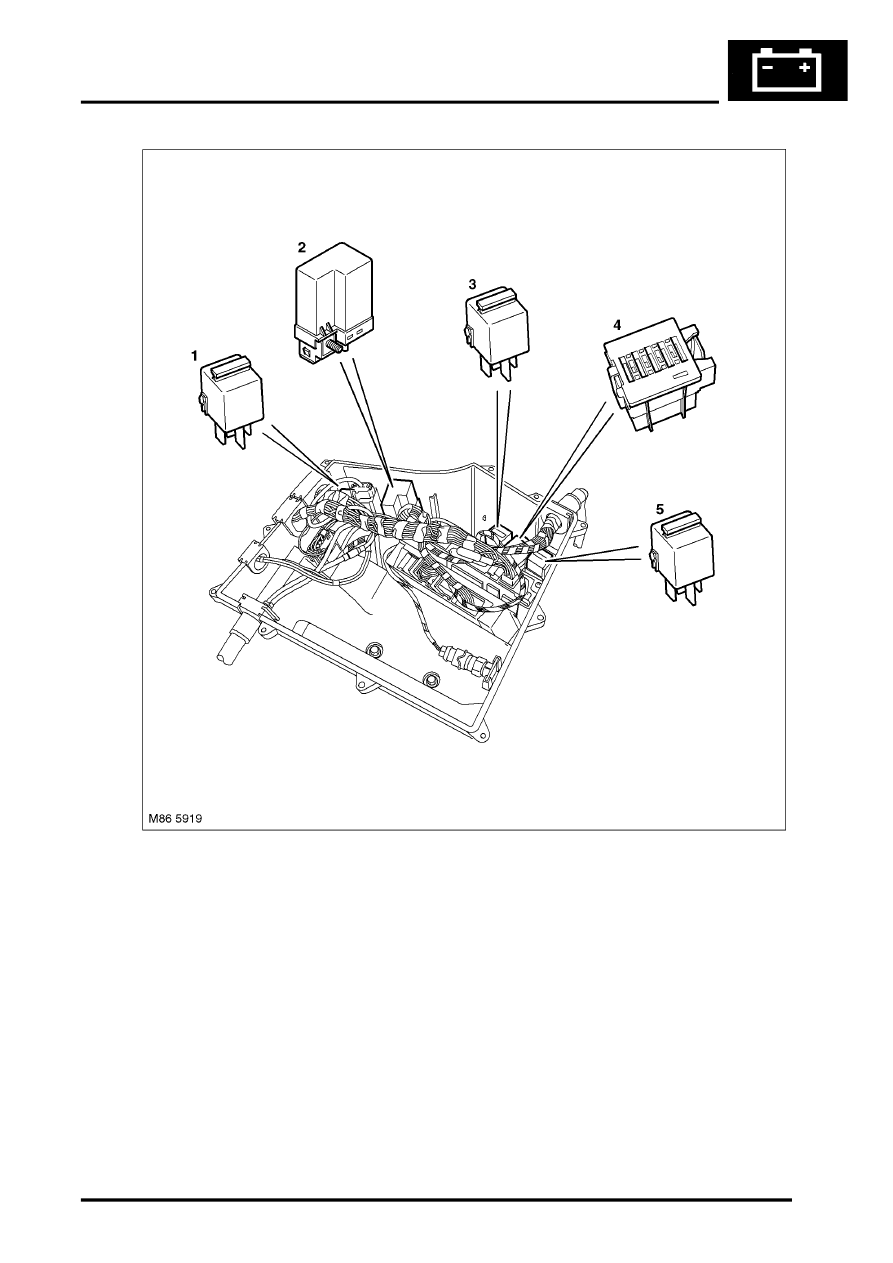

Engine Compartment E-Box Relays and Fuses
1 Ignition coil relay (V8 only)
2 Glow plugs relay (Td6 only)
3 Secondary air injection pump relay (V8 only)
4 Engine compartment fusebox
5 Main relay
