Relay Locations (page 4 of 5)
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover System Description and Operation
- Section
- Description
CHARGING AND STARTINGRelay Locations · page 4 of 5
CHARGING AND STARTING
86-1-12 DESCRIPTION AND OPERATION

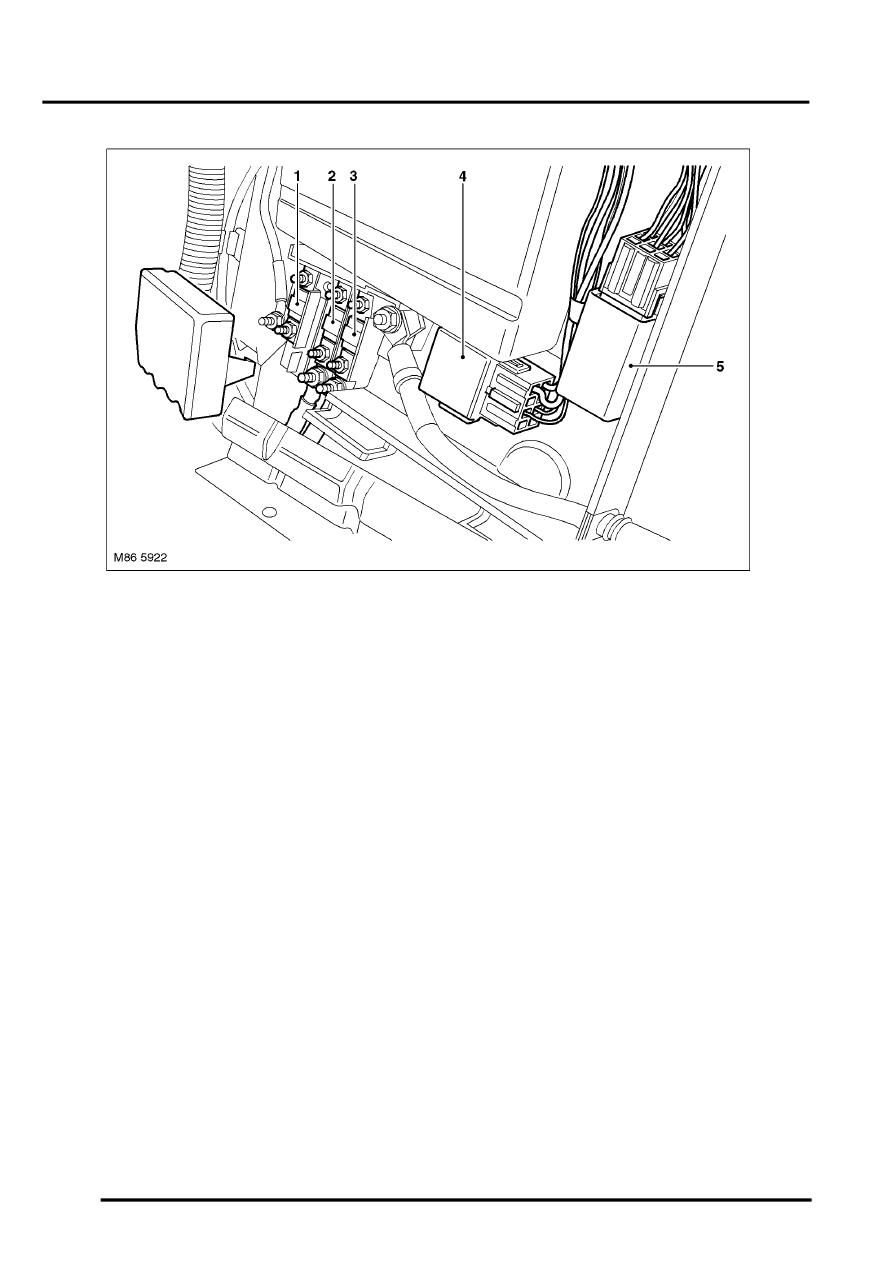

Engine Compartment Bulkhead Relays and Fusible Links
1 Transfer box supply fusible link
2 Glow plug relay supply fusible link (Td6 only)
3 Main relay supply fusible link (Td6 only)
4 Starter motor relay (V8 only)
5 Windscreen wipers relay
