- Steering Component Location – Td6
STEERINGSteering Component Location – Td6
STEERING
DESCRIPTION AND OPERATION
57-1
STEERING
DESCRIPTION AND OPERATION

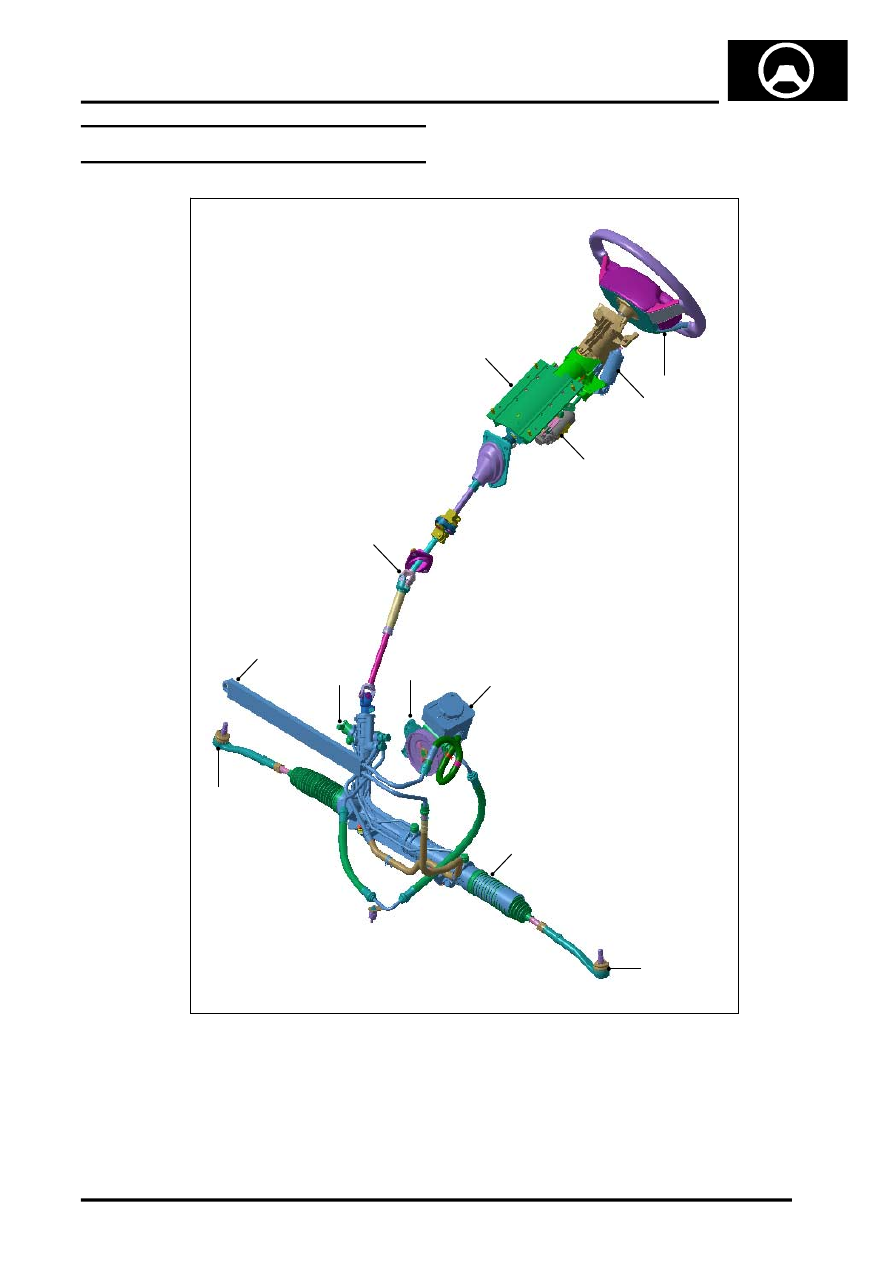

Steering Component Location – Td6
RHD shown, LHD similar
1 Fluid cooler
2 Servotronic valve
3 Lower column
4 Upper column
5 Steering wheel
6 Column adjustment motor – tilt
7 Column adjustment motor – reach
8 PAS pump
9 PAS fluid reservoir
10 Steering rack
11 LH track rod
12 RH track rod
M57 1177
12
1
2
3
4
5
6
7
8
9
10
11
