Suspension Component Location
- Make
- Land Rover
- Model
- Range Rover L322 Range Rover System Description and Operation
- Section
- Suspension Component Location
SUSPENSIONSuspension Component Location
SUSPENSION
DESCRIPTION AND OPERATION
60-1
SUSPENSION
DESCRIPTION AND OPERATION

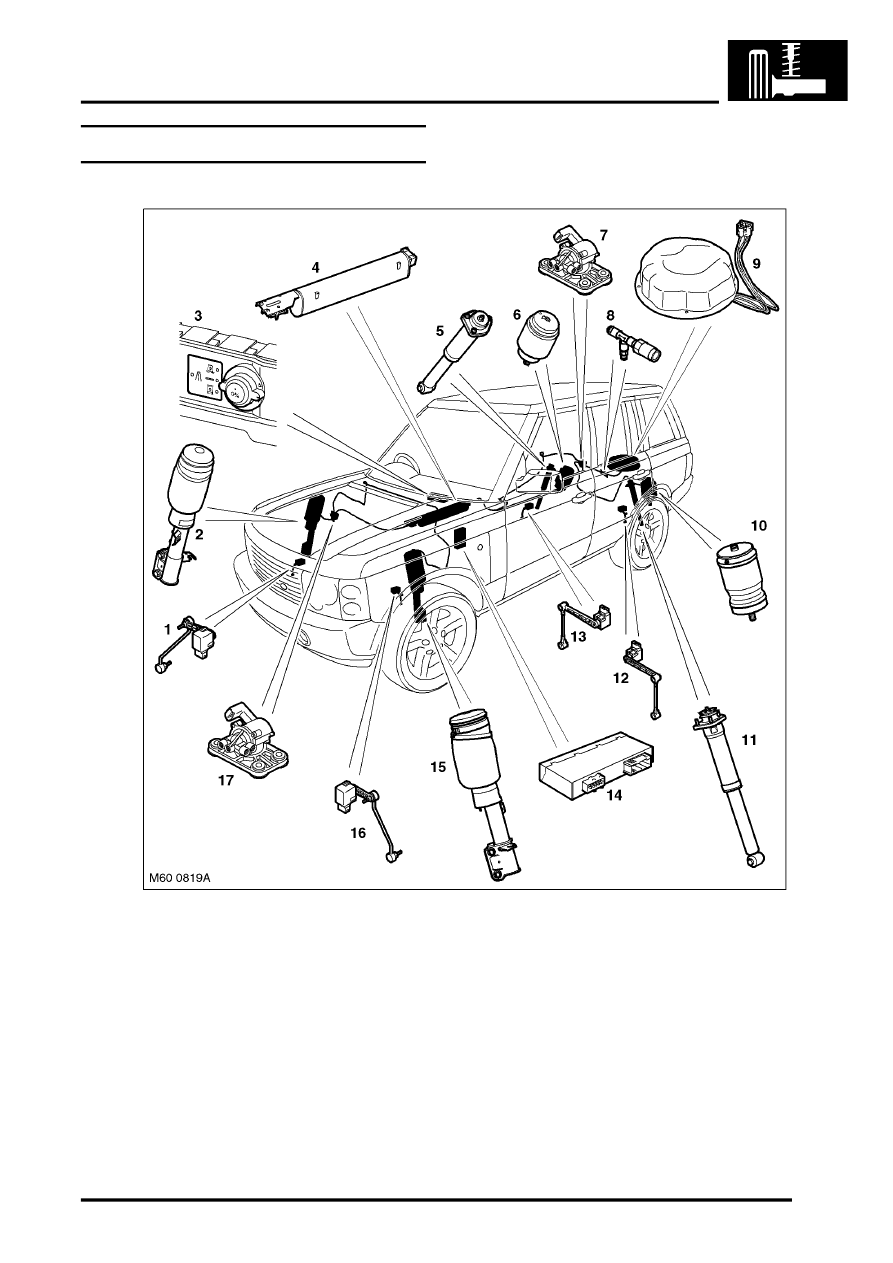

Suspension Component Location
1 Front RH height sensor
2 Front RH strut assembly
3 Air suspension control switch
4 Reservoir and valve block
5 Rear RH damper
6 Rear RH air spring
7 Rear cross link valve
8 External pressure relief valve (where fitted)
9 Compressor assembly
10 Rear LH air spring
11 Rear LH damper
12 Rear LH height sensor
13 Rear RH height sensor
14 Air suspension ECU
15 Front LH strut assembly
16 Front LH height sensor
17 Front cross link valve
