Relay Locations (page 2 of 5)

CHARGING AND STARTING

86-1-10 DESCRIPTION AND OPERATION

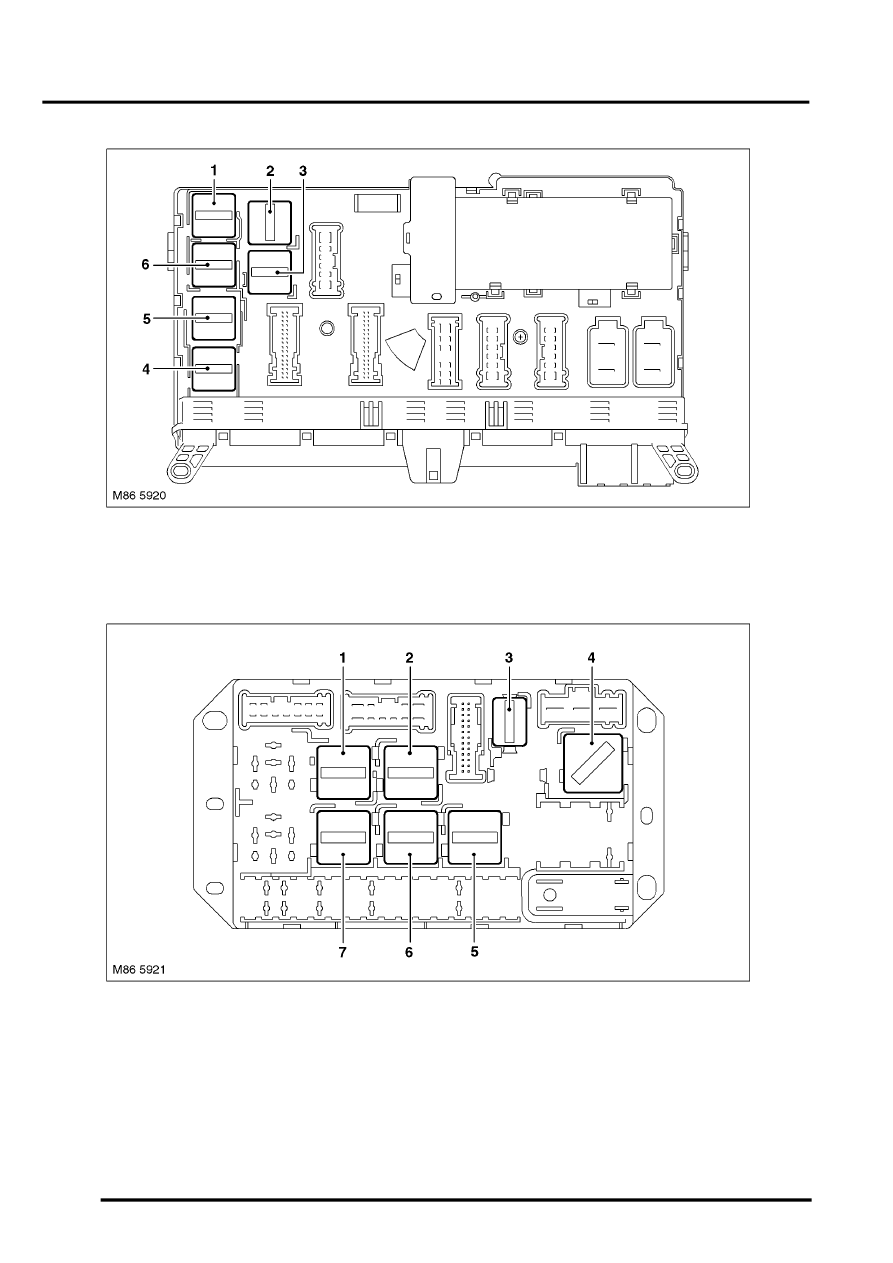

Passenger Compartment Fusebox Relays

1 Heated washer jets and wiper heater relay
2 Electric seats relay
3 Not used

4 Horn relay
5 Door/Approach lamps relay
6 Steering wheel heater relay

Rear Fusebox Relays

1 Cigar lighter relay (where fitted)
2 Rear blower relay
3 Lower tail door release relay
4 Air suspension supply unit relay

5 Fuel pump relay
6 Rear seat heaters relay
7 Heated rear window relay
