- Drive and Propeller Shafts – Component Location
DRIVE AND PROPELLER SHAFTSDrive and Propeller Shafts – Component Location
DRIVE AND PROPELLER SHAFTS
DESCRIPTION AND OPERATION
47-1
DRIVE AND PROPELLER SHAFTS
DESCRIPTION AND OPERATION

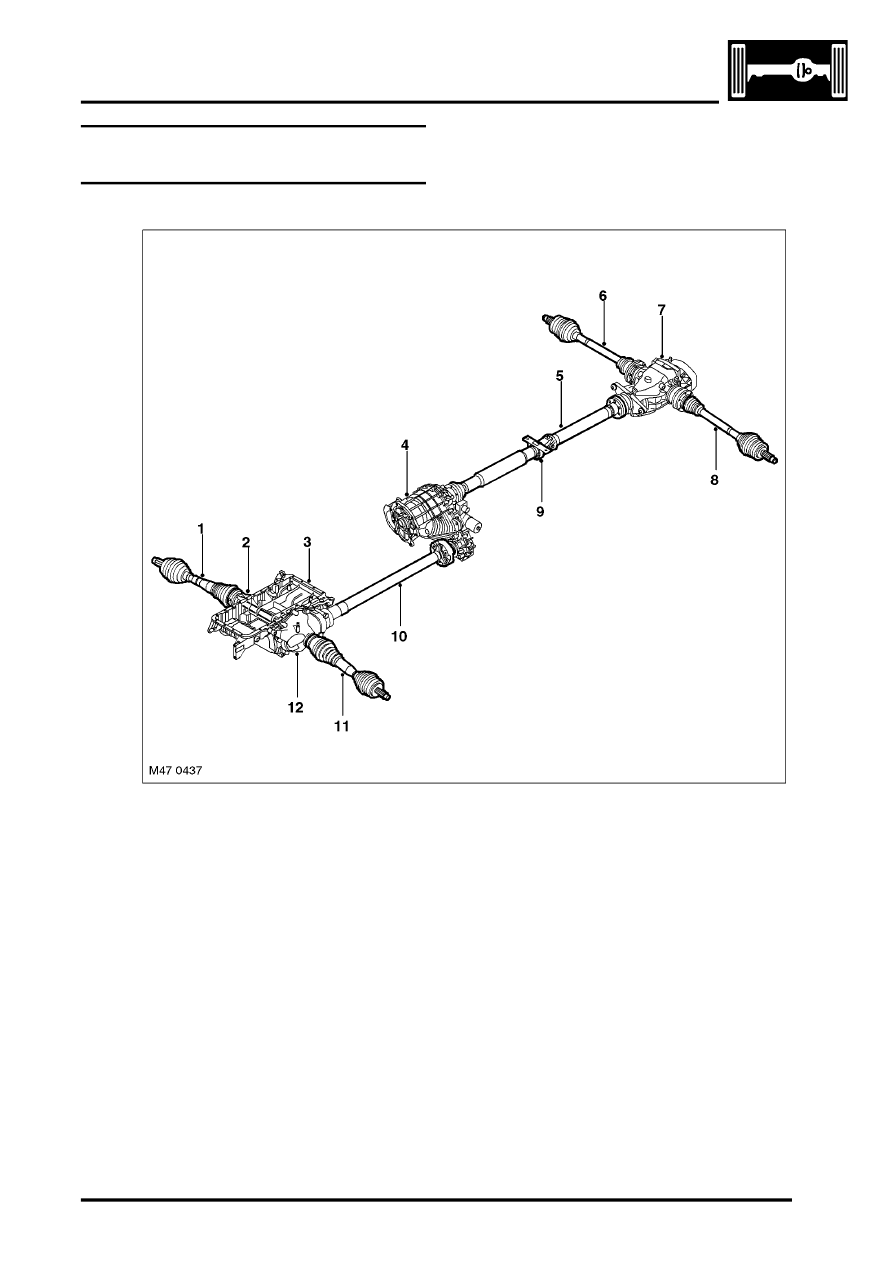

Drive and Propeller Shafts – Component
Location
V8 specification shown, Td6 specification similar
1 Front RH drive shaft
2 Mounting bracket
3 Engine sump
4 Transfer box
5 Rear propeller shaft assembly
6 Rear RH drive shaft
7 Rear differential
8 Rear LH drive shaft
9 Support bearing
10 Front propeller shaft
11 Front LH drive shaft
12 Front differential.
