INSTRUMENTS

DESCRIPTION AND OPERATION

88-1

INSTRUMENTS

DESCRIPTION AND OPERATION

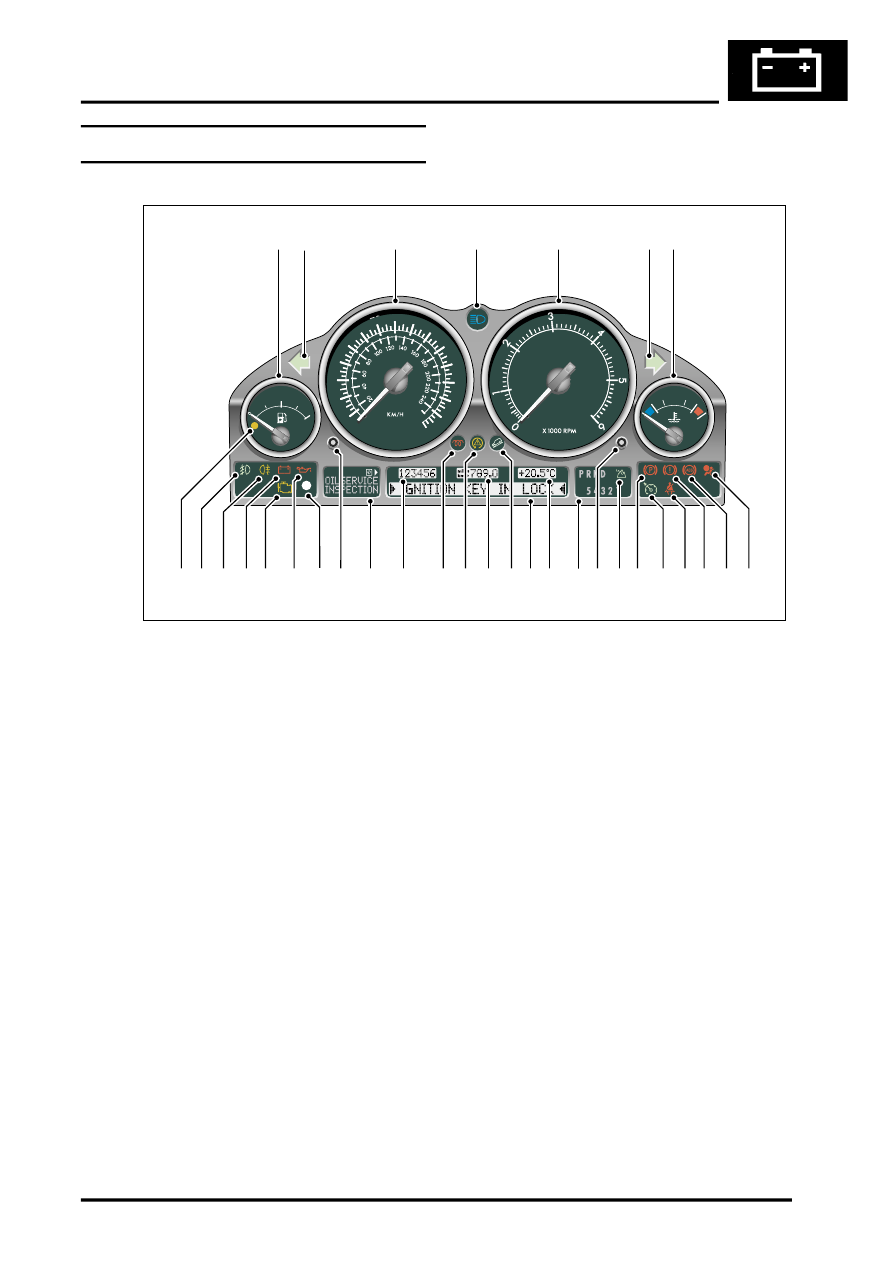

Instrument Pack – Front View

RHD UK Td6 specification shown

1 Fuel level gauge
2 Left turn indicator lamp
3 Speedometer
4 Main beam indicator lamp
5 Tachometer
6 Right turn indicator lamp
7 Coolant temperature gauge
8 Supplementary Restraint system (SRS)

warning lamp

9 Anti-lock Brake System (ABS) warning lamp

10 General brake warning/brake assist warning

lamp

11 Seat belt warning lamp
12 Handbrake warning lamp
13 Cruise control active lamp
14 Check control button
15 Low range indicator lamp

16 Gear position indicator
17 External temperature display
18 Message centre display
19 Hill Descent Control (HDC) lamp
20 Trip recorder display
21 Dynamic Stability Control (DSC) lamp
22 Glow plug active lamp (diesel models only)
23 Odometer
24 Service interval indicator
25 Trip reset / Service interval reset button
26 Phototransistor
27 Low oil pressure warning lamp
28 Malfunction Indicator Lamp (MIL)
29 Battery charge indicator
30 Rear fog lamp active lamp
31 Front fog lamp active lamp
32 Low fuel level warning lamp

M88 0342

1/2

1/2

1/1

1/1

MPH

3030

110

130

150

10

90

50

70

2

1

3

4

5

6

7

8

10

11

13

1512

14

16

17

19 18

23

21 20

24

25

27

28

31

9

26

32

22

30 29
