Seal - tray - sun /sliding roof - front

SUNROOF

REPAIRS

76-6-3

Seal - tray - sun /sliding roof - front

$% 76.83.61

Remove

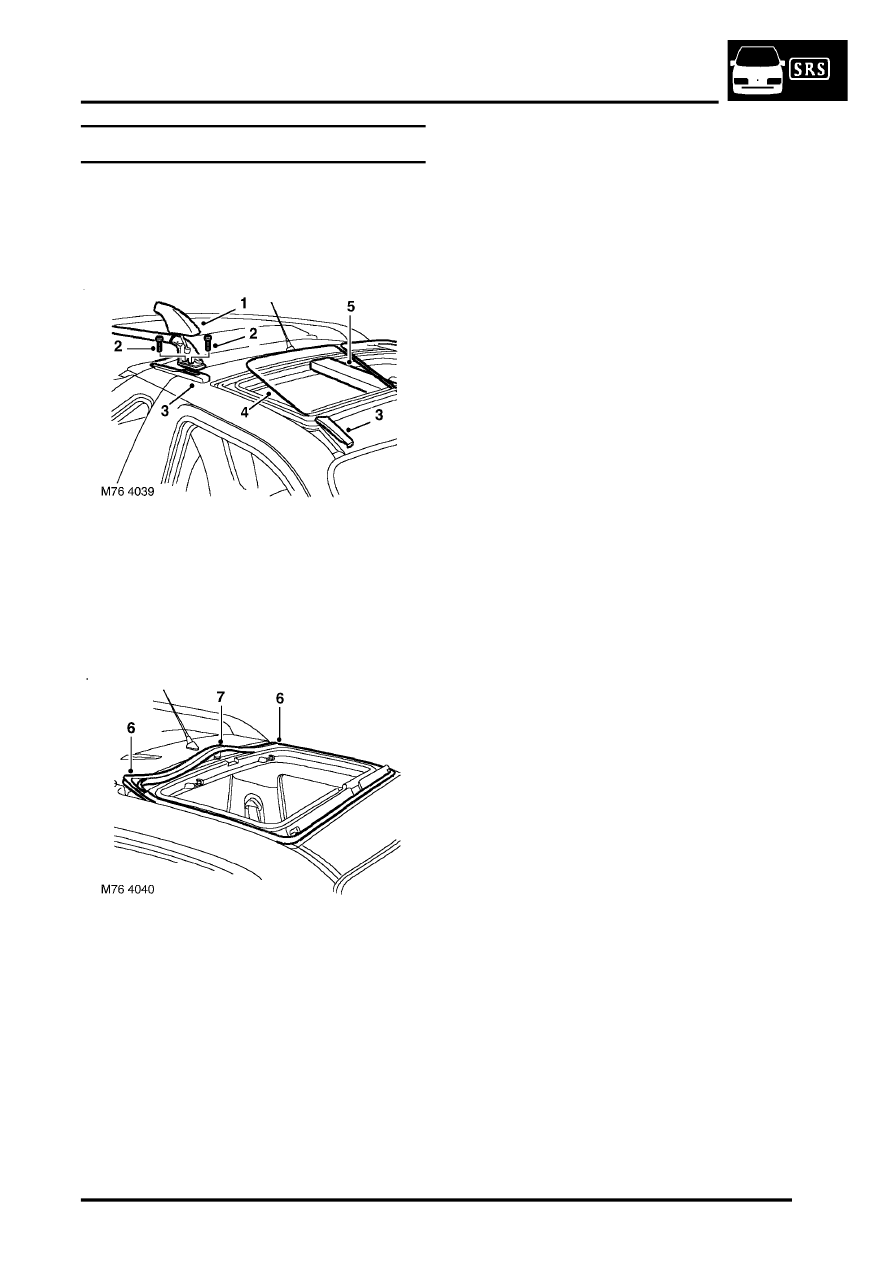

1. Remove side rail front end covers.
2. Remove 4 Torx bolts securing front of side rails.
3. Remove front and rear roof finishers.
4. Remove glass panels and 'T' bar.
5. Remove seal from inner part of tray.

6. Release seal from corners of tray and ease

from between roof and tray.

7. Remove tray seal.

Refit

1. Position seal to roof.
2. Locate seal to corners of tray and fit between

roof and tray.

3. Fit seal to inner part of tray.
4. Fit 'T' bar and roof glass.
5. Fit roof finishers.
6. Ensure gaskets and in position on side rails. Fit

rails and secure Torx bolts to 22 Nm (16 lbf.ft).

7. Fit side rail end covers.
