Drive belt - compressor - Td4

AIR CONDITIONING

REPAIRS

82-5

REPAIRS

Drive belt - compressor - Td4

$% 82.10.02

Remove

1. Disconnect battery earth lead.
2. Remove ancillary drive belt.

 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - Td4.

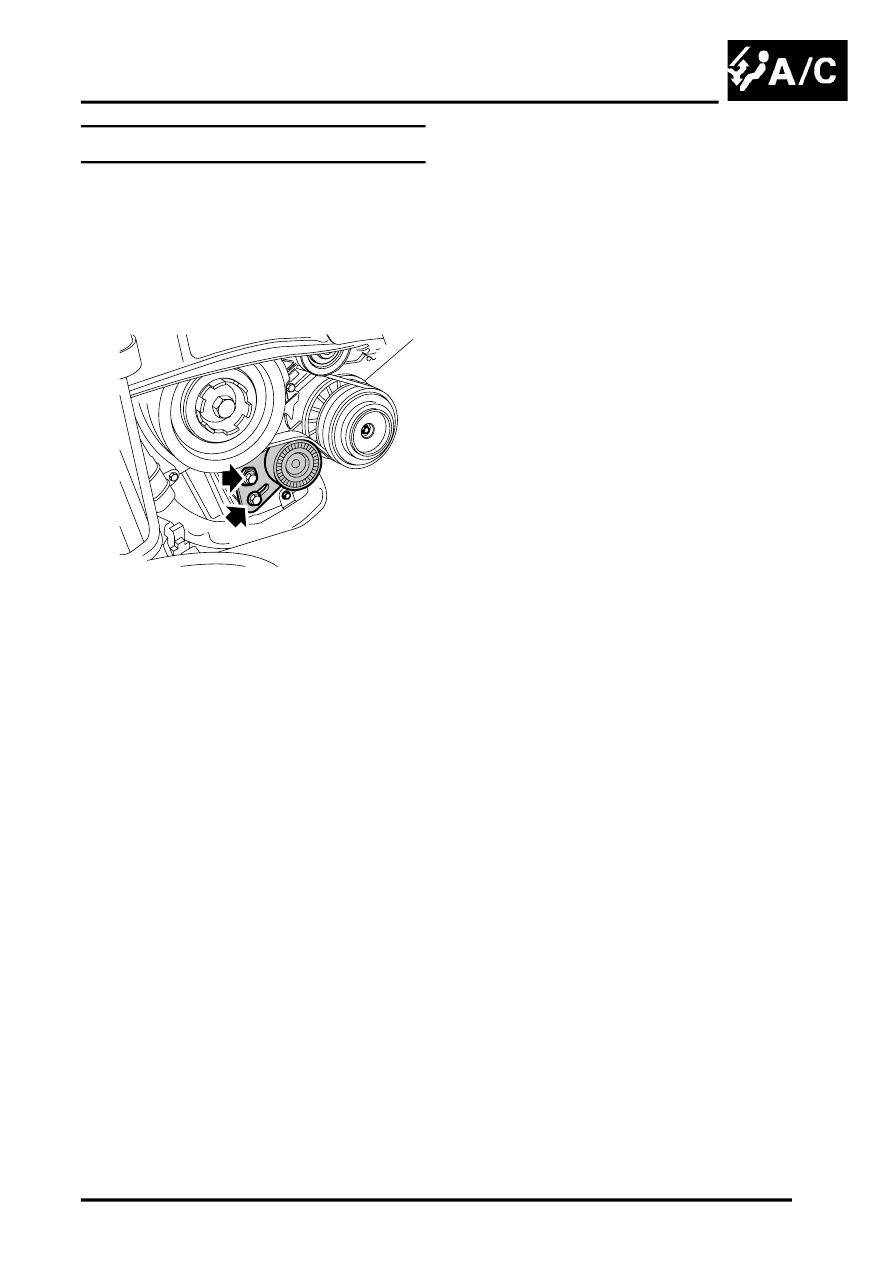

3. Loosen clamp and pivot bolts of compressor

drive belt tensioner.

4. Remove compressor drive belt.

Refit

1. Ensure compressor drive belt and compressor,

crankshaft and tensioner pulleys are clean.

2. Fit compressor drive belt.
3. Adjust compressor drive belt.

 +

 AIR CONDITIONING,

ADJUSTMENTS, Drive belt - compressor -
Td4.

4. Fit ancillary drive belt.

 +

 CHARGING AND STARTING,

REPAIRS, Ancillary drive belt - Td4.

5. Connect battery earth lead.

M82 0721
