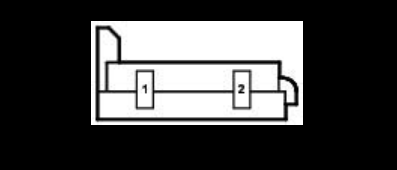

J108 Right front seat polyswitch

Make

Lancia

Model

Thesis Factory Service Manual

Year

2002–2009

Section

Relays › J108 Right front seat polyswitch

Connectors and pin-outsJ108 Right front seat polyswitch

J108 Right front seat polyswitch

2.4 20V

Wiring	Colour
37 RIGHT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	L	X	H067	B2
				D071A	A
				J106	87
				J105	87
				J105	85
				J106	85
2	100,5	LR		I068	4

2.0 TB

Wiring	Colour
37 RIGHT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	L	X	H067	B2
				D071A	A
				J106	87
				J105	87
				J105	85
				J106	85
2	100,5	LR		I068	4

2.4 JTD 10V

Wiring	Colour
37 RIGHT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	L	X	H067	B2
				D071A	A
				J106	87
				J105	87
				J105	85
				J106	85
2	100,5	LR		I068	4

3.0 V6

Wiring	Colour
37 RIGHT SEAT

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1	100,5	L	X	H067	B2
				D071A	A
				J106	87
				J105	87
				J105	85
				J106	85
2	100,5	LR		I068	4
