H090 switch control panel

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Manual electric controls › H090 switch control panel

Connectors and pin-outsH090 switch control panel

H090 SWITCH CONTROL PANEL

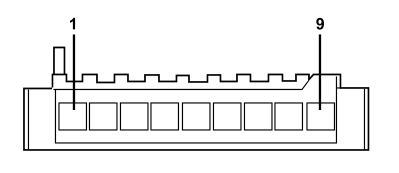

H090A – Dashboard

Wiring	Colour
See 20 DASHBOARD	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	VB		See M001N BODY COMPUTER (DASHBOARD)	5
2	0,35	CN		See M001P BODY COMPUTER (DASHBOARD)	3
3	0,35	HM		See M001N BODY COMPUTER (DASHBOARD)	6
4	0,35	AV		See M001P BODY COMPUTER (DASHBOARD)	4
5	0,35	HR		See M001N BODY COMPUTER (DASHBOARD)	7

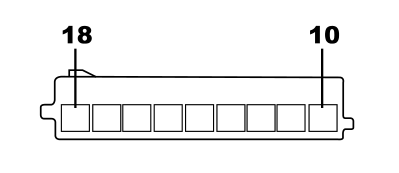

H090B – Dashboard

ESP

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
12	0,35	HV		See M001O BODY COMPUTER (DASHBOARD)	11
13	0,35	LG		See D097E SHORT CIRCUITING COUPLING (DASHBOARD)	2
14	0,35	AM		See M001H BODY COMPUTER (DASHBOARD)	26
17	0,35	CB		See D001 FRONT/DASHBOARD COUPLING	2
18	0,35	NZ		See D001 FRONT/DASHBOARD COUPLING	3

All versions

Wiring	Colour
See 20 DASHBOARD	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
12	0,35	HV		See M001O BODY COMPUTER (DASHBOARD)	11
13	0,35	LG		See D097E SHORT CIRCUITING COUPLING (DASHBOARD)	2
14	0,35	AM		See M001H BODY COMPUTER (DASHBOARD)	26
