D075 radio phone coupling

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D075 radio phone coupling

Connectors and pin-outsD075 radio phone coupling

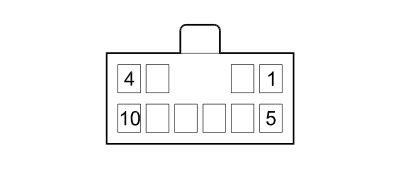

D075 RADIO PHONE COUPLING

Wiring	Colour
See 20 DASHBOARD	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	HR		See M094D RADIO RECEIVER NODE (DASHBOARD)	7
3	0,35	LS		See M094D RADIO RECEIVER NODE (DASHBOARD)	8
4	0,35	BV		See M094D RADIO RECEIVER NODE (DASHBOARD)	9
7	0,5	LR		See D097F SHORT CIRCUITING COUPLING (DASHBOARD)	4
8	0,35	GR	X	See M094A RADIO RECEIVER NODE (DASHBOARD)	6
				See D097E SHORT CIRCUITING COUPLING (DASHBOARD)	8
9	0,5	RG		See M001L BODY COMPUTER (DASHBOARD)	5
10	0,5	NZ		See D097F SHORT CIRCUITING COUPLING (DASHBOARD)	9
