I030 brake pedal switch

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Switches › I030 brake pedal switch

Connectors and pin-outsI030 brake pedal switch

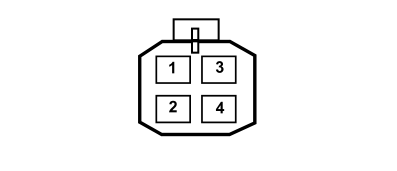

I030 BRAKE PEDAL SWITCH

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LB		See D097C SHORT CIRCUITING COUPLING (FRONT)	9
2	1	ZB		See D097C SHORT CIRCUITING COUPLING (FRONT)	1
3	0,75	CN	X	See B001D JUNCTION UNIT (FRONT)	14
				See K074 SLEWING SENSOR (VDC)	3
4	1	LN		See D001 FRONT/DASHBOARD COUPLING	6

1.3 JTD 16v · SUV

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LB		See M010B ENGINE MANAGEMENT ECU (FRONT)	68
2	1	ZB	X	See M010B ENGINE MANAGEMENT ECU (FRONT)	92
				See M001B BODY COMPUTER (FRONT)	5
				See M051 Braking system control unit	30
3	0,75	BL	X	See B001D JUNCTION UNIT (FRONT)	14
				See M051 Braking system control unit	28
4	1	LN		See D001 FRONT/DASHBOARD COUPLING	6

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	LB		See D097C SHORT CIRCUITING COUPLING (FRONT)	9
2	1	ZB		See D097C SHORT CIRCUITING COUPLING (FRONT)	1
3	0,75	BL		See B001D JUNCTION UNIT (FRONT)	14
4	1	LN		See D001 FRONT/DASHBOARD COUPLING	6

1.1, 1.2 8v · ABS

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	ZB		See D097C SHORT CIRCUITING COUPLING (FRONT)	1
4	1	LN		See D001 FRONT/DASHBOARD COUPLING	6

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	ZB		See M001B BODY COMPUTER (FRONT)	5
4	1	LN		See D001 FRONT/DASHBOARD COUPLING	6
