Fiat
Panda Factory Service Manual (2003-2012)
Connectors and pin-outs
Intermediate couplings
D001 front/dashboard coupling
22 · General
D001 front/dashboard coupling
Make
Fiat
Model
Panda Factory Service Manual
Year
2003–2012
Section
Intermediate couplings › D001 front/dashboard coupling
Connectors and pin-outs D001 front/dashboard coupling

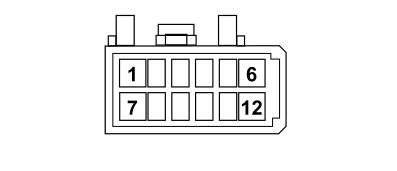

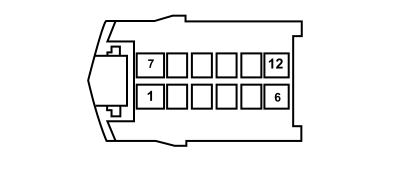

D001 FRONT/DASHBOARD COUPLING
1.2 8v · Air Conditioner, ESP, Smart gearbox
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0,5 BN See M086B ELECTRIC STEERING CONTROL UNIT (FRONT) 4 2 0,5 CB See M051 Braking system control unit 31 3 0,5 NZ See M051 Braking system control unit 46 5 0,35 MV See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT) 80 6 1 LN See I030 BRAKE PEDAL SWITCH 4 7 2,5 LR X See B001D JUNCTION UNIT (FRONT) 42 See D001 FRONT/DASHBOARD COUPLING 12 8 0,35 HV See D008 AIR CONDITIONING-HEATER FRONT COUPLING 1 9 0,35 GR See F011 RIGHT HEADLAMP 13 9 0,35 GR See F010 LEFT HEADLAMP 13 10 0,5 CN See M010B ENGINE MANAGEMENT ECU (FRONT) 58 11 0,35 LG See H034 ROBOTIZED GEARBOX AUTO FUNCTION SWITCH 4 12 2,5 LR X See B001D JUNCTION UNIT (FRONT) 42 See D001 FRONT/DASHBOARD COUPLING 7
1.2 8v · Smart gearbox
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0,5 BN See M086B ELECTRIC STEERING CONTROL UNIT (FRONT) 4 2 0,5 CB See M051 Braking system control unit 31 3 0,5 NZ See M051 Braking system control unit 46 5 0,35 MV See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT) 80 6 1 LN See I030 BRAKE PEDAL SWITCH 4 7 2,5 LR X See B001D JUNCTION UNIT (FRONT) 42 See D001 FRONT/DASHBOARD COUPLING 12 8 0,35 HV See D008 AIR CONDITIONING-HEATER FRONT COUPLING 1 9 0,35 GR See F011 RIGHT HEADLAMP 13 9 0,35 GR See F010 LEFT HEADLAMP 13 10 0,5 CN See M010B ENGINE MANAGEMENT ECU (FRONT) 58 11 0,35 LG See H034 ROBOTIZED GEARBOX AUTO FUNCTION SWITCH 4 12 2,5 LR X See B001D JUNCTION UNIT (FRONT) 42 See D001 FRONT/DASHBOARD COUPLING 7
1.3 JTD 16v · Air Conditioner
1.3 JTD 16v
1.1, 1.2 8v
ESP
Pin Cable Destination Sec. Colour Node Connect. Pin 1 0,5 BN See R010 MULTIPLE TESTER CONNECTION 9 2 0,35 CB See H090B SWITCH CONTROL PANEL (DASHBOARD) 17 3 0,35 NZ See H090B SWITCH CONTROL PANEL (DASHBOARD) 18 4 0,5 MN See D097F SHORT CIRCUITING COUPLING (DASHBOARD) 6 5 0,35 MV See E050B INSTRUMENT PANEL (DASHBOARD) 11 6 1 LN See B002 JUNCTION UNIT UNDER DASHBOARD 30 7 2,5 LR See B002 JUNCTION UNIT UNDER DASHBOARD 23 8 0,35 GR See D097E SHORT CIRCUITING COUPLING (DASHBOARD) 9 9 0,35 GN See E050A INSTRUMENT PANEL (DASHBOARD) 6 10 0,35 CN See E050B INSTRUMENT PANEL (DASHBOARD) 10 11 0,35 LG See D097E SHORT CIRCUITING COUPLING (DASHBOARD) 5 12 2,5 V See B002 JUNCTION UNIT UNDER DASHBOARD 17
All versions
22 General
