H037 gear controls

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Manual electric controls › H037 gear controls

Connectors and pin-outsH037 gear controls

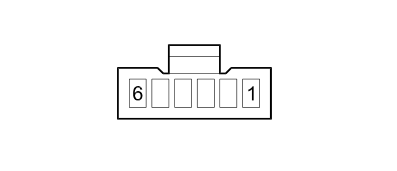

H037 GEAR CONTROLS

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	NZ		See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	65
2	0,35	GR		See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	26
3	0,35	SZ		See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	68
4	0,35	HV		See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	67
5	0,35	HR		See M054B ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	74
6	0,35	CB	X	See M054A ROBOTIZED TRANSMISSION CONTROL UNIT (FRONT)	28
				See B001D JUNCTION UNIT (FRONT)	84
				See D097A SHORT CIRCUITING COUPLING (FRONT)	9
