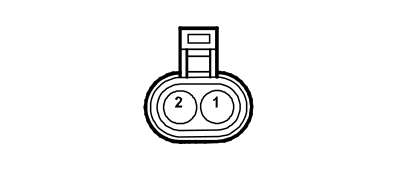

I020 REVERSING LIGHTS SWITCH

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AN		See D097A SHORT CIRCUITING COUPLING (FRONT)	1
2	0,5	B		See M001C BODY COMPUTER (FRONT)	1

1.3 JTD 16v · SUV

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AN	X	See B001D JUNCTION UNIT (FRONT)	48
				See M001C BODY COMPUTER (FRONT)	9
				See D008 AIR CONDITIONING-HEATER FRONT COUPLING	5
				See B001D JUNCTION UNIT (FRONT)	80
				See B001D JUNCTION UNIT (FRONT)	68
				See B001D JUNCTION UNIT (FRONT)	64
2	0,5	B		See M001C BODY COMPUTER (FRONT)	1

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AN		See D097A SHORT CIRCUITING COUPLING (FRONT)	1
2	0,5	B		See M001C BODY COMPUTER (FRONT)	1

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	AN		See D097A SHORT CIRCUITING COUPLING (FRONT)	1
2	0,5	B		See M001C BODY COMPUTER (FRONT)	1
