D006 front/rear coupling

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D006 front/rear coupling

Connectors and pin-outsD006 front/rear coupling

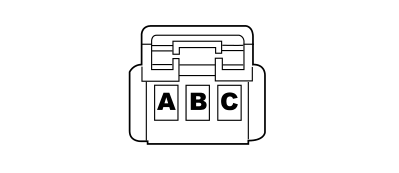

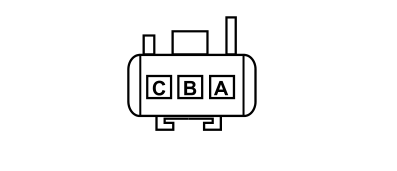

D006 FRONT/REAR COUPLING

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2,5	ZG		See B001D JUNCTION UNIT (FRONT)	20
B	1,5	C		See B001D JUNCTION UNIT (FRONT)	24
C	1,5	AN		See B001D JUNCTION UNIT (FRONT)	15

1.3 JTD 16v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2,5	ZN		See B001D JUNCTION UNIT (FRONT)	91
B	1,5	C		See B001D JUNCTION UNIT (FRONT)	24
C	1,5	AN		See B001D JUNCTION UNIT (FRONT)	15

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2,5	ZG		See B001D JUNCTION UNIT (FRONT)	20
B	1,5	C		See B001D JUNCTION UNIT (FRONT)	24
C	1,5	AN		See B001D JUNCTION UNIT (FRONT)	15

All versions

Wiring	Colour
See 25 REAR	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
A	2,5	ZG		See N040 FUEL PUMP AND LEVEL GAUGE	4
B	1,5	C		See D073 TRAILER PREPARATION COUPLING	1
C	1,5	AN		See P050 CIGARETTE LIGHTER/POWER SOCKET	2
