A020 starter motor

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Starting - recharging › A020 starter motor

Connectors and pin-outsA020 starter motor

A020 STARTER MOTOR

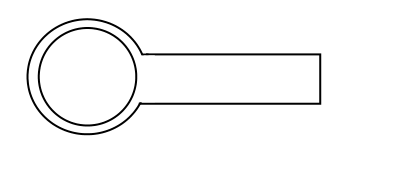

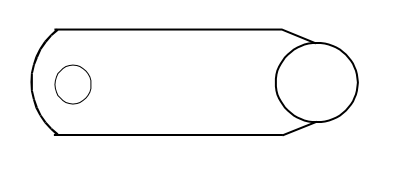

A020A – Engine

1.3 JTD 16v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	M		See D004 FRONT/ENGINE COUPLING	G

1.2 8v · Smart gearbox

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	M		See D004 FRONT/ENGINE COUPLING	G

1.1, 1.2 8v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	M		See D004 FRONT/ENGINE COUPLING	G

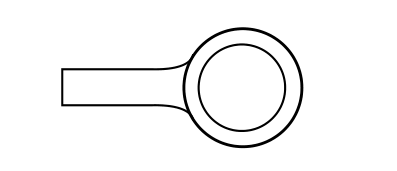

A020B – Battery positive

Wiring	Colour
See 41 BATTERY POSITIVE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	16	R		See A001E BATTERY (BATTERY POSITIVE)

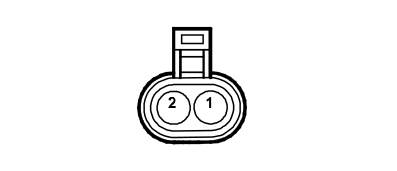

A020C – Recharging

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	10	R		See A010B ALTERNATOR (RECHARGING)
