A030 ignition coil

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Starting - recharging › A030 ignition coil

Connectors and pin-outsA030 ignition coil

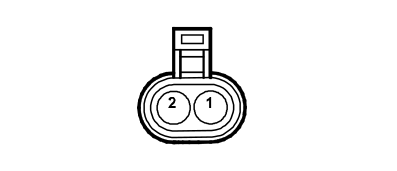

A030 IGNITION COIL

A030A – Engine

1.2 8v · Smart gearbox

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	MB	X	See A030B IGNITION COIL (ENGINE)	1
				See D004 FRONT/ENGINE COUPLING	F
				See N070D INJECTOR (ENGINE)	1
				See N070B INJECTOR (ENGINE)	1
				See N070C INJECTOR (ENGINE)	1
				See N070A INJECTOR (ENGINE)	1
2	0,75	HV		See M010A ENGINE MANAGEMENT ECU (ENGINE)	17

1.1, 1.2 8v

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	MR	X	See A030B IGNITION COIL (ENGINE)	1
				See D004 FRONT/ENGINE COUPLING	F
				See N070B INJECTOR (ENGINE)	1
				See N070A INJECTOR (ENGINE)	1
				See N070C INJECTOR (ENGINE)	1
				See N070D INJECTOR (ENGINE)	1
2	0,75	MN		See M010A ENGINE MANAGEMENT ECU (ENGINE)	59

A030B – Engine

1.2 8v · Smart gearbox

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,75	MB	X	See A030A IGNITION COIL (ENGINE)	1
				See D004 FRONT/ENGINE COUPLING	F
				See N070D INJECTOR (ENGINE)	1
				See N070B INJECTOR (ENGINE)	1
				See N070C INJECTOR (ENGINE)	1
				See N070A INJECTOR (ENGINE)	1
2	0,75	GR		See M010A ENGINE MANAGEMENT ECU (ENGINE)	19

1.1, 1.2 8v

Wiring	Colour
See 50 ENGINE	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0, 75	MR	X	See D004 FRONT/ENGINE COUPLING	F
				See N070B INJECTOR (ENGINE)	1
				See N070A INJECTOR (ENGINE)	1
				See N070C INJECTOR (ENGINE)	1
				See A030A IGNITION COIL (ENGINE)	1
				See N070D INJECTOR (ENGINE)	1
2	0, 75	NZ		See M010A ENGINE MANAGEMENT ECU (ENGINE)	66
