A010 alternator

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Starting - recharging › A010 alternator

Connectors and pin-outsA010 alternator

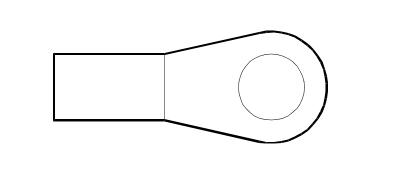

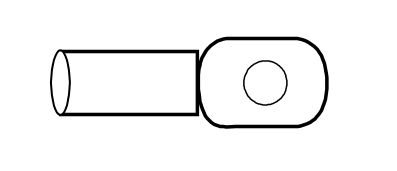

A010 ALTERNATOR

A010A – Engine

1.3 JTD 16v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GR		See D004 FRONT/ENGINE COUPLING	B

1.2 8v · Smart gearbox

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GR		See D004 FRONT/ENGINE COUPLING	B

1.1, 1.2 8v

Wiring	Colour
See 50 ENGINE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	GR		See D004 FRONT/ENGINE COUPLING	B

A010B – Recharging

Wiring	Colour
See 45 RECHARGING

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	10	R		See A020C STARTER MOTOR (RECHARGING)
