D085

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Intermediate couplings › D085

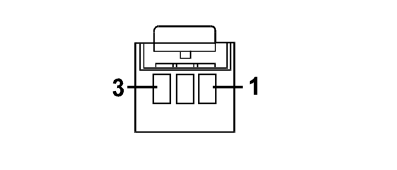

Connectors and pin-outsD085

D085

Door lock

Wiring	Colour
See 25 REAR	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	MV		See M001F BODY COMPUTER (REAR)	5
2	0,35	GH		See M001F BODY COMPUTER (REAR)	14
3	1	NZ		See C030 LEFT REAR EARTH	3
4	0,35	LM		See M001G BODY COMPUTER (REAR)	12

All versions

Wiring	Colour
See 25 REAR	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	MV		See M001F BODY COMPUTER (REAR)	5
2	0,35	GH		See M001F BODY COMPUTER (REAR)	14
3	1	NZ		See C030 LEFT REAR EARTH	3
