G010 front courtesy light

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Interior lights › G010 front courtesy light

Connectors and pin-outsG010 front courtesy light

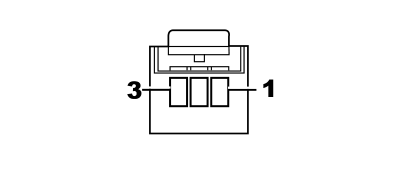

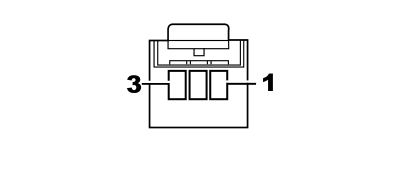

G010 FRONT COURTESY LIGHT

Door lock

Wiring	Colour
See 25 REAR	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N		See C030 LEFT REAR EARTH	4
2	0,5	RG		See M001F BODY COMPUTER (REAR)	10
3	0,5	AG		See M001G BODY COMPUTER (REAR)	10

All versions

Wiring	Colour
See 25 REAR	bianco

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	N		See C030 LEFT REAR EARTH	4
2	0,5	RG		See M001E BODY COMPUTER (REAR)	4
3	0,5	V		See I016A SWITCH ON LEFT FRONT DOOR. (REAR)	1
