I050 inertia switch
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Switches › I050 inertia switch
Connectors and pin-outsI050 inertia switch

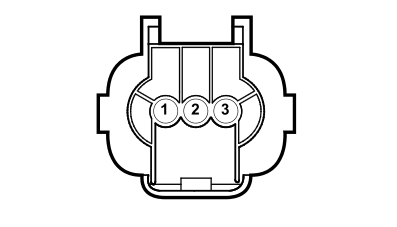

I050 INERTIA SWITCH
| Wiring | Colour |
|---|---|
| See 25 REAR | nero |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 2 | SN | See C030 LEFT REAR EARTH | 10 | |
| 2 | 0,5 | HN | See M001G BODY COMPUTER (REAR) | 14 | |
| 3 | 2 | RZ | See N040 FUEL PUMP AND LEVEL GAUGE | 3 | |
