I033 switch on boot outer handle

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Switches › I033 switch on boot outer handle

Connectors and pin-outsI033 switch on boot outer handle

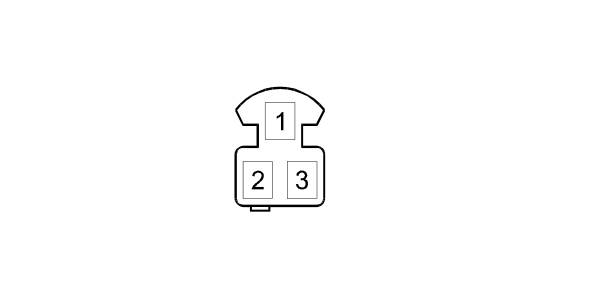

I033 SWITCH ON BOOT OUTER HANDLE

Wiring	Colour
See 25 REAR	nero

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,35	CN		See M001G BODY COMPUTER (REAR)	5
2	0,35	NV		See C030 LEFT REAR EARTH	12
3	0,35	CB	X	See M001G BODY COMPUTER (REAR)	13
				See G040 BOOT COURTESY LIGHT	2
