C045 fan earth

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Earths › C045 fan earth

Connectors and pin-outsC045 fan earth

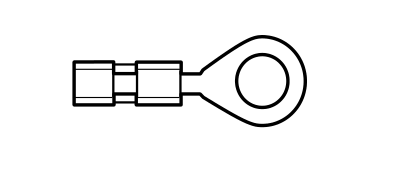

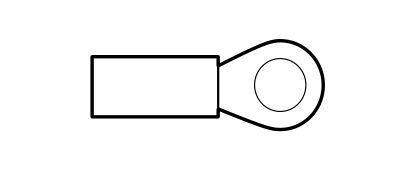

C045 FAN EARTH

1.2 8v · Air Conditioner, ESP, Smart gearbox

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	N		See N011 FAN MOTOR	2

1.2 8v · Smart gearbox

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See N011 FAN MOTOR	1

1.3 JTD 16v · Air Conditioner

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4	N		See D009 FRONT/RADIATOR COUPLING	B

1.3 JTD 16v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	2,5	N		See N011 FAN MOTOR	1

1.1, 1.2 8v · Air Conditioner

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	4	N		See N011 FAN MOTOR	2

1.1, 1.2 8v

Wiring	Colour
See 12 FRONT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
	2,5	N		See N011 FAN MOTOR	1
