F020 left side repeater
- Make
- Fiat
- Model
- Panda Factory Service Manual
- Year
- 2003–2012
- Section
- Exterior lights › F020 left side repeater
Connectors and pin-outsF020 left side repeater

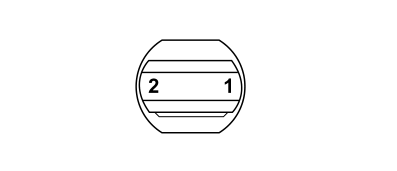

F020 LEFT SIDE REPEATER
| Wiring | Colour |
|---|---|
| See 25 REAR |
| Pin | Cable | Destination | |||
|---|---|---|---|---|---|
| Sec. | Colour | Node | Connect. | Pin | |
| 1 | 0,5 | N | See C030 LEFT REAR EARTH | 2 | |
| 2 | 0,5 | S | See M001F BODY COMPUTER (REAR) | 16 | |
