NAVIGATION SYSTEM COMPONENTS (87 - NAVIGATION SYSTEM) (page 3 of 9)

87

NAVIGATION SYSTEM

NEW RANGE ROVER

6

DESCRIPTION AND OPERATION

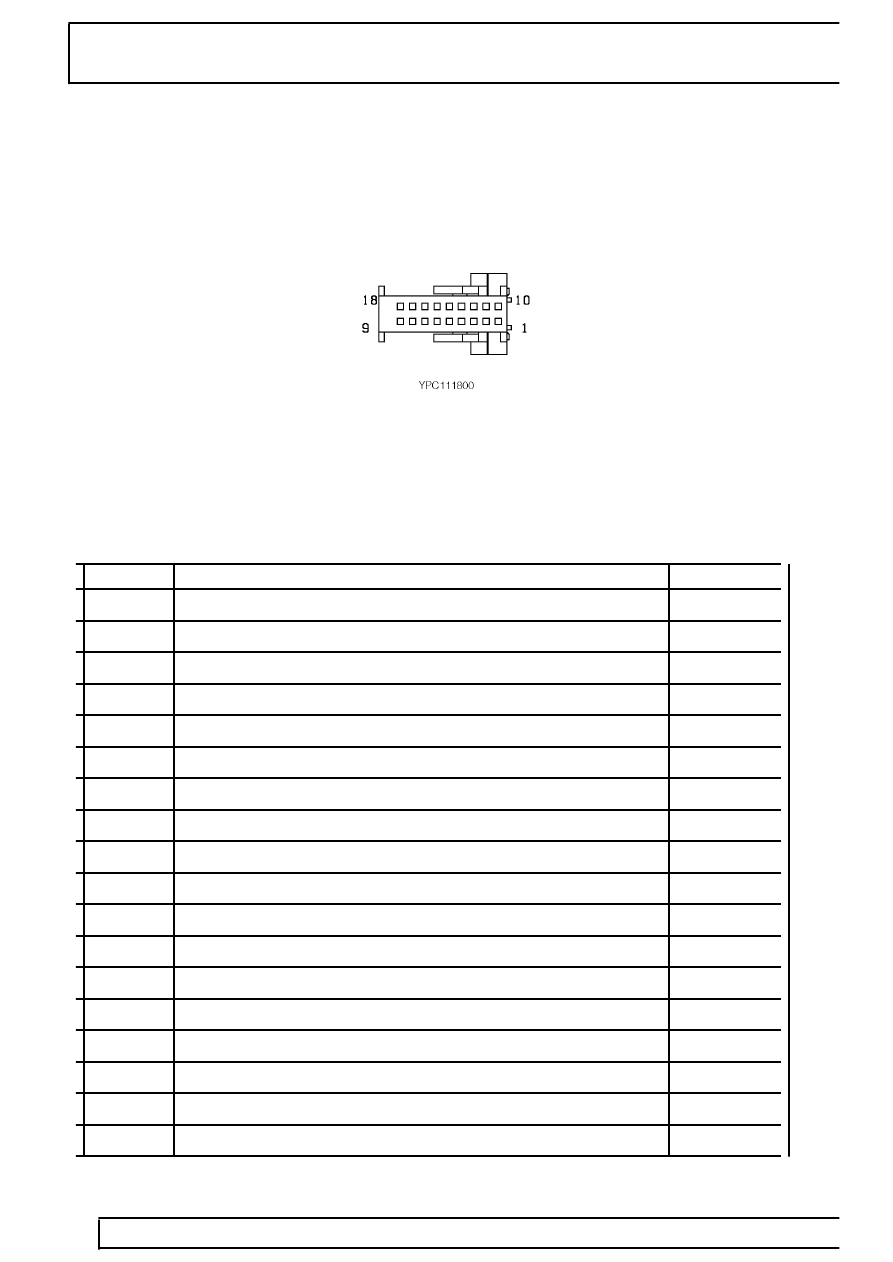

18 way MQL

Pin No.

Description

Input/Output

1

Reversing light signal

Input

2

Navigation audio -

Output

3

+12V Auxiliary feed

Input

4

Navigation audio +

Output

5

RS232 data transmit

Output

6

RS232 data receive

Input

7

Not used

-

8

Serial data link to GPS receiver

Output

9

Serial data link from GPS receiver

Input

10

Left road speed signal

Input

11

Not used

-

12

Not used

-

13

Test output (MUTE)

Output

14

Ground for RS232 data transmit

Output

15

Ground for RS232 data receive

Input

16

Pulse per second from GPS receiver

Input

17

Serial data link to GPS receiver - inverted

Output

18

Serial data link from GPS receiver - inverted

Input
