NAVIGATION SYSTEM COMPONENTS (87 - NAVIGATION SYSTEM) (page 2 of 9)

NAVIGATION SYSTEM

5

DESCRIPTION AND OPERATION

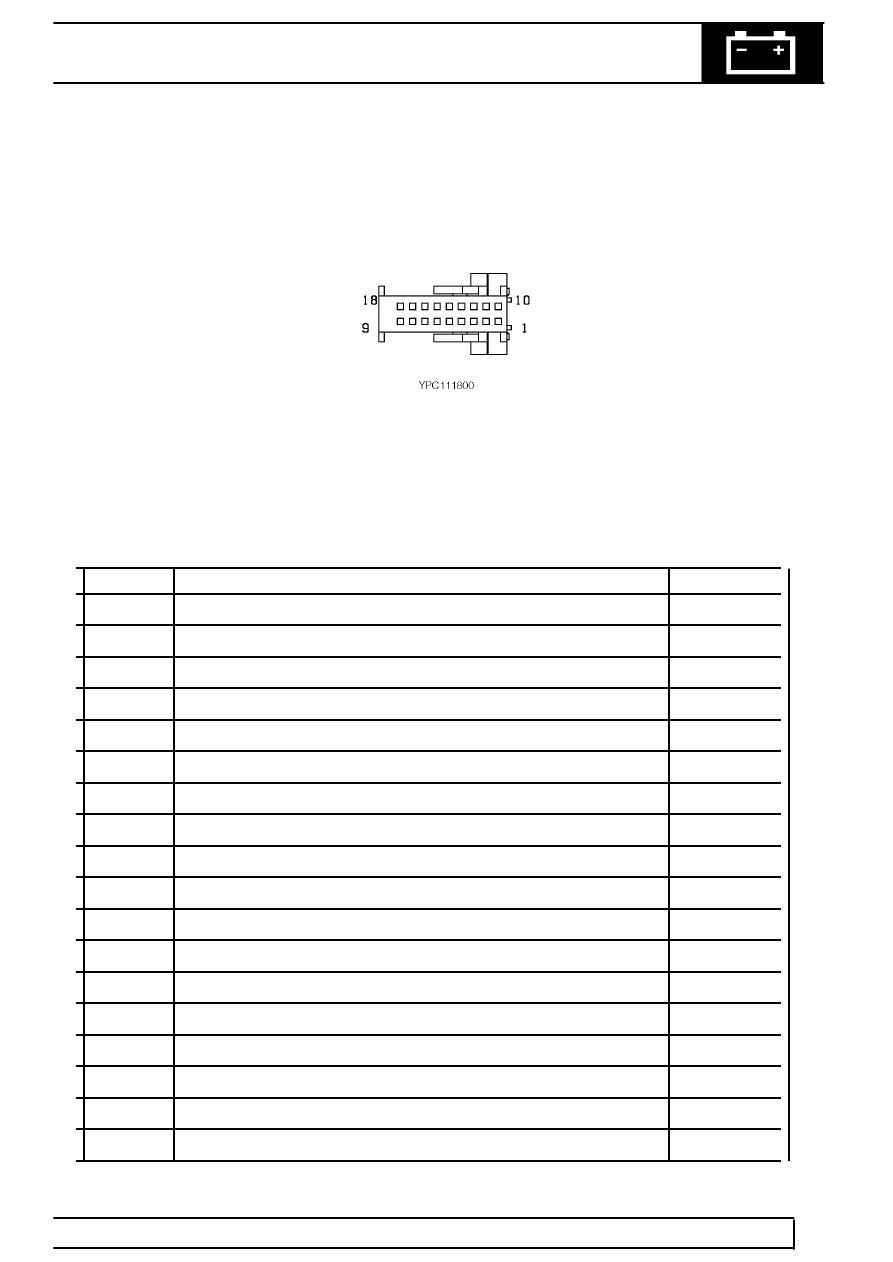

18 way MQL - Blue

Pin No.

Description

Input/Output

1

+12V Permanent feed

Input

2

Not used

-

3

K-bus

Input/Output

4

Not used

-

5

Green Video + sync 50

Ω

to LCD display

Output

6

Blue video 50

Ω

to LCD display

Output

7

Red video 50

Ω

to LCD display

Output

8

Green video 75

Ω

output to video module

Output

9

Navigation audio +

Output

10

Ground

Input

11

Not used

-

12

Ground for LCD display

Output

13

Not used

-

14

Video ground for 50

Ω

output

Output

15

Not used

-

16

Video ground for 50

Ω

output

Output

17

Not used

-

18

Navigation audio -

Output
