80 - HEATING AND VENTILATIONOPERATION
80
HEATING AND VENTILATION
NEW RANGE ROVER
8
DESCRIPTION AND OPERATION
OPERATION

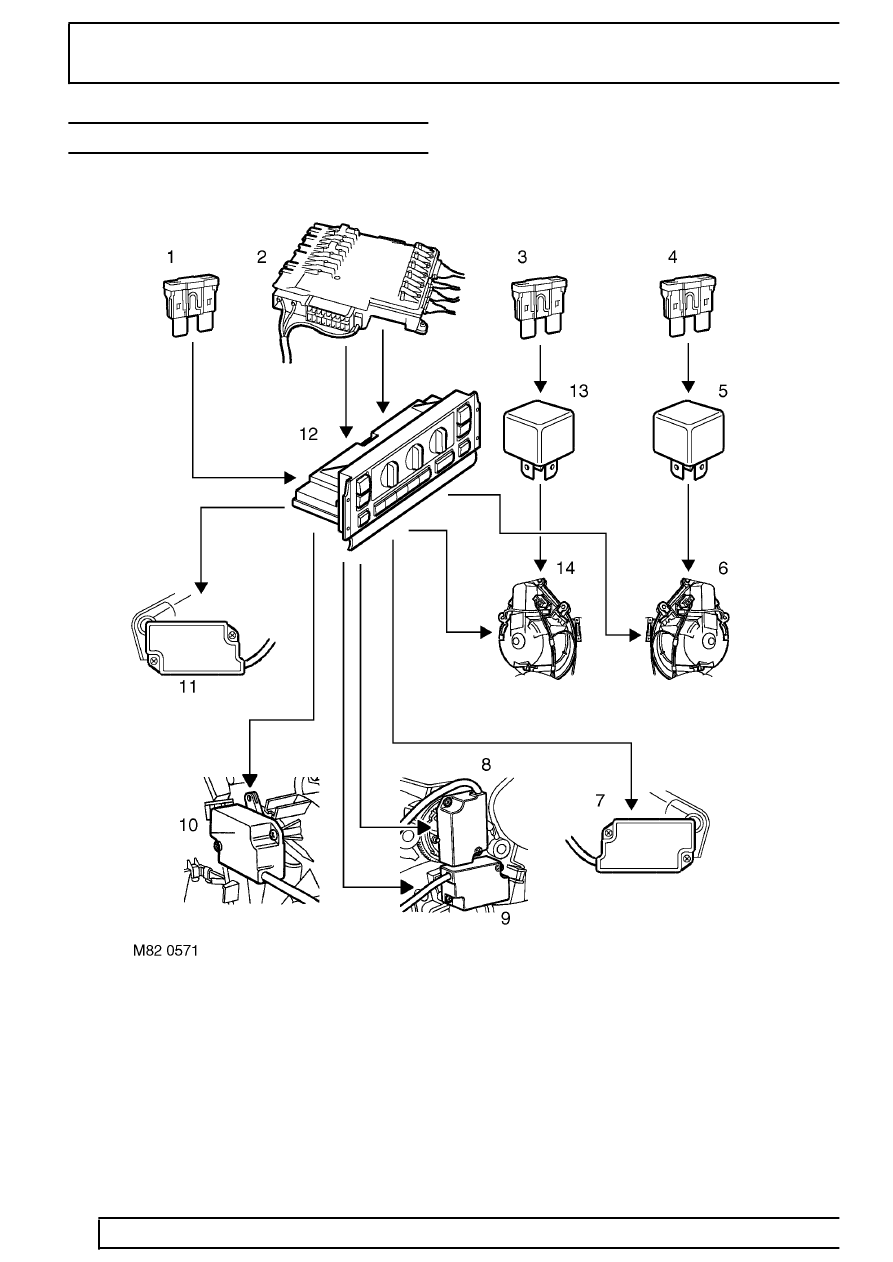

Heating and ventilation control diagram
1. Fuse 42 (battery power)
2. BeCM
3. Fuse 34 (battery power)
4. Fuse 43 (battery power)
5. Relay 6 (auxiliary 1)
6. RH blower
7. RH fresh/ recirculated air servo
8. RH temperature servo
9. Distribution servo
10. LH temperature servo
11. LH fresh/ recirculated air servo
12. Heater ECU
13. Relay 7 (auxiliary 2)
14. LH blower
