BODY DIMENSIONS (page 8 of 10)
- Make
- Land Rover
- Model
- Range Rover P38
77
PANEL REPAIRS
NEW RANGE ROVER
8

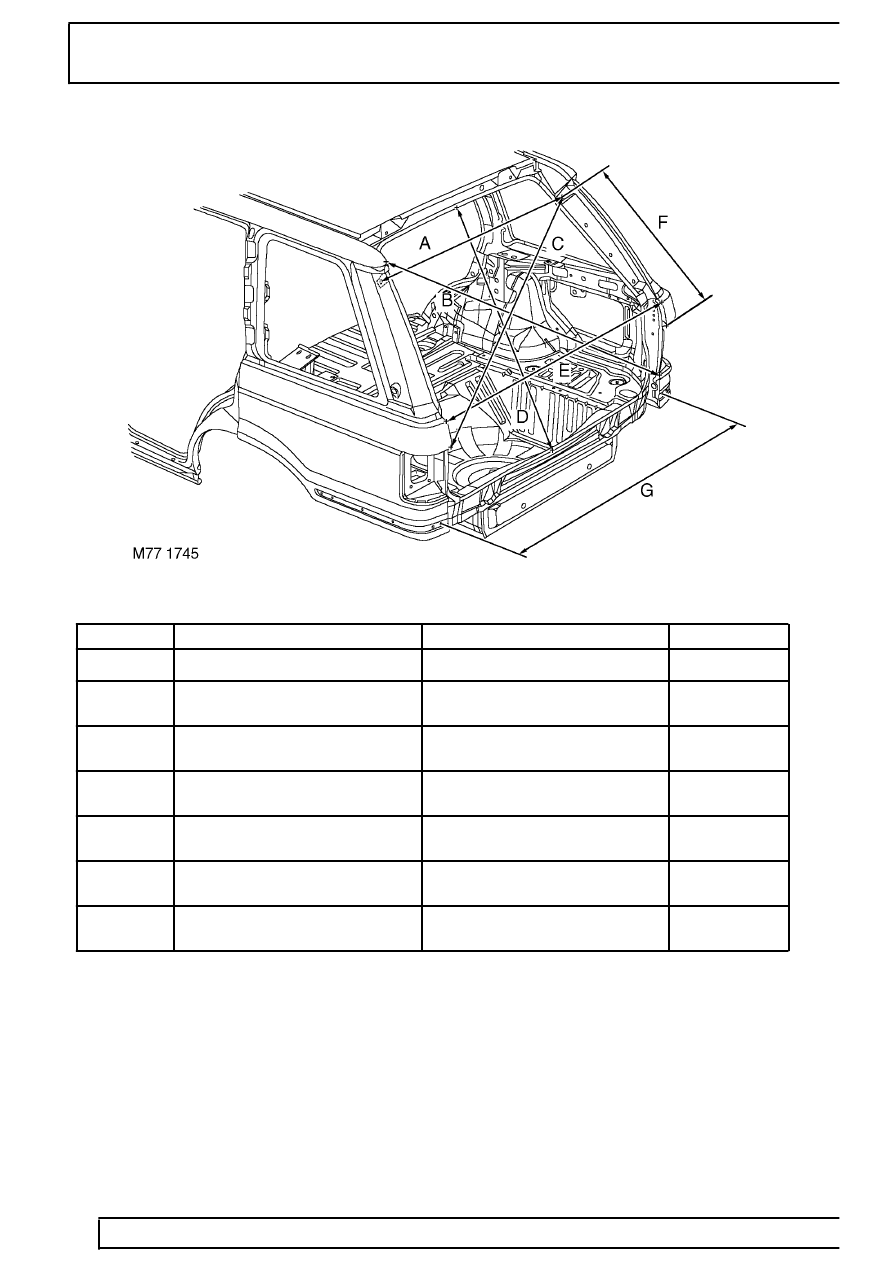

BODY DIMENSIONS
ITEM
FROM
TO
DIMENSION
A
Gas strut spigot fixing hole - RH
Gas strut spigot fixing hole - LH
1175.4 (46.27)
B
Body side rear, lower intersection
point - RH
Body side rear, upper intersection
point - LH
1620.8 (63.81)
C
Gas strut spigot fixing hole - RH
Body side rear, middle intersection
point - LH
1483.2 (58.39)
D
Roof channel break line (centre
line of car)
Crossmember rear, top break line
(centre line of car)
1109.3 (43.67)
E
Body side rear, middle intersection
point - RH
Body side rear, middle intersection
point - LH
1415.6 (55.73)
F
Gas strut spigot fixing hole
Body side rear, middle intersection
point
727.2 (28.63)
G
Body side rear, trim fixing hole -
RH
Body side rear, trim fixing hole -
LH
727.2 (28.63)
