REPAIR › PARCEL TRAY SUPPORT - FROM 2000MY
76 - CHASSIS AND BODYPARCEL TRAY SUPPORT - FROM 2000MY
background image

CHASSIS AND BODY

51

REPAIR

PARCEL TRAY SUPPORT

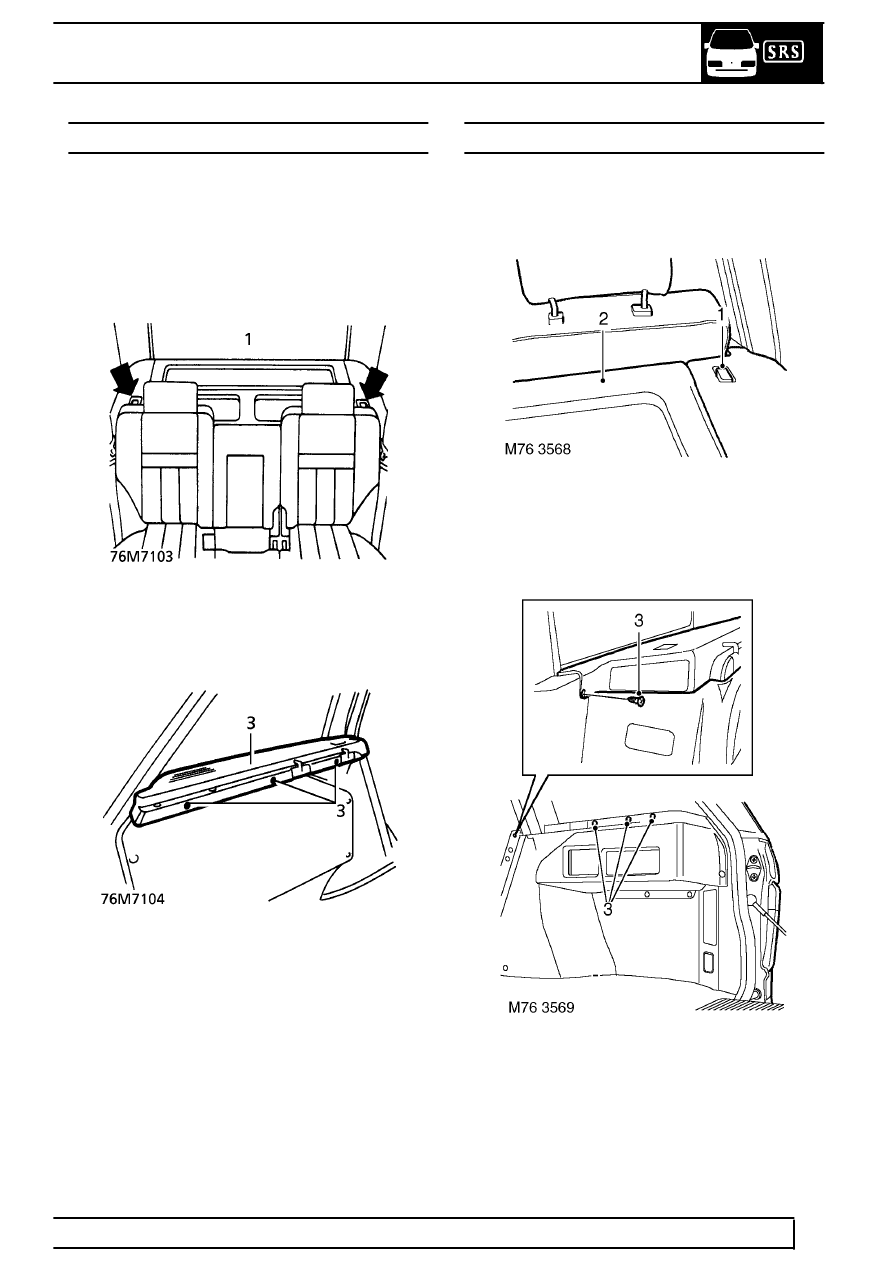

Service repair no - 76.67.11

Remove

1. Release 2 squab catches and fold rear seats

forward.

2. Remove parcel tray.
3. Remove 3 studs securing parcel tray support.

Remove support.

Refit

4. Reverse removal procedure.

PARCEL TRAY SUPPORT - FROM 2000MY

Service repair no - 76.67.11

Remove

1. Release 2 squab catches and fold rear seats

forward.

2. Remove parcel tray.

3. Remove 3 studs and 1 screw securing parcel

tray support.
