TRANSFER BOX - DESCRIPTION (41 - TRANSFER BOX) (page 2 of 8)
- Make
- Land Rover
- Model
- Range Rover P38
- Section
- DESCRIPTION AND OPERATION
41 - TRANSFER BOXTRANSFER BOX - DESCRIPTION · page 2 of 8
TRANSFER BOX
5
DESCRIPTION AND OPERATION

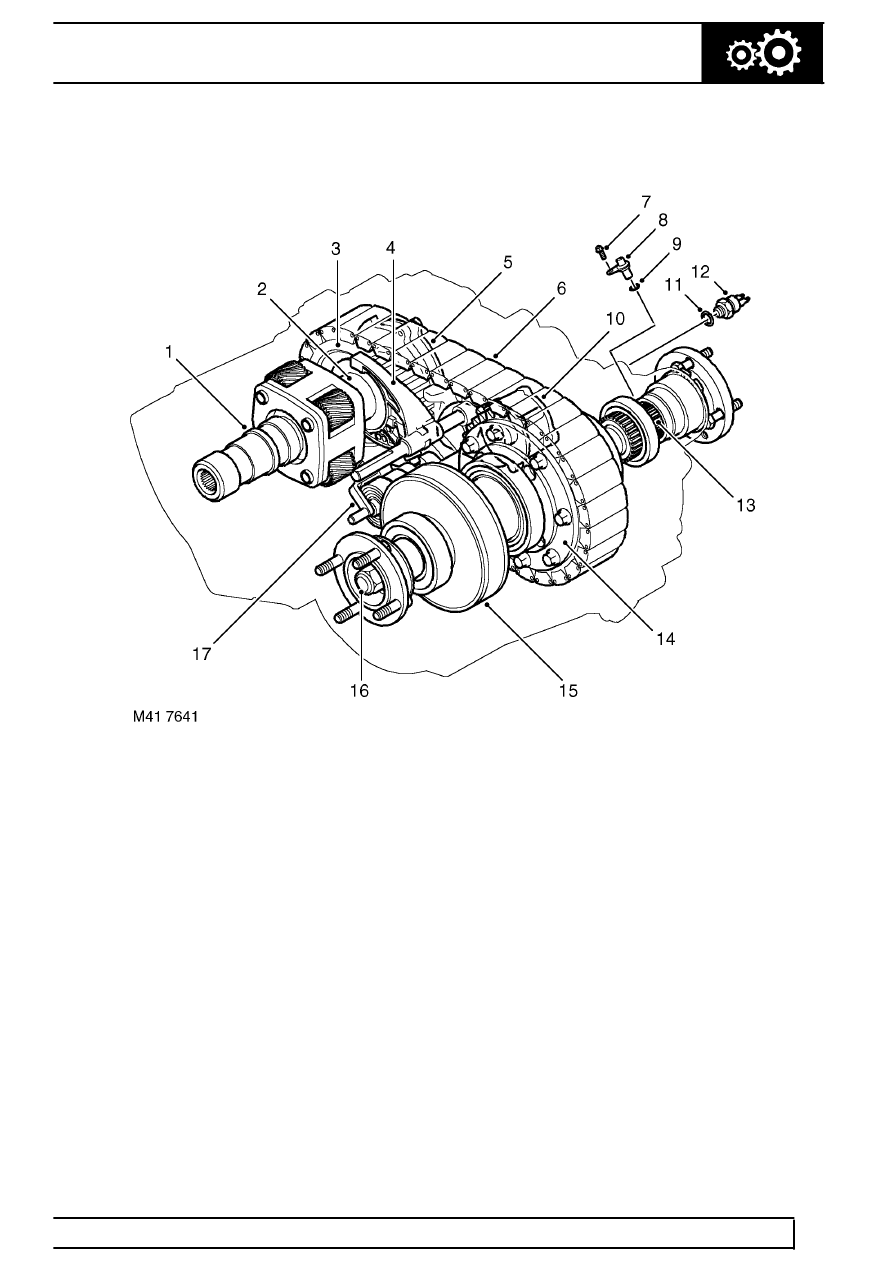

Transfer Box
1. Epicyclic gear set
2. Reduction hub
3. Drive gear
4. Selector fork
5. Oil pump
6. Morse chain
7. Bolt
8. Speed sensor
9. ’O’ ring
10. Ratio control motor
11. Temperature sensor
12. Sealing washer
13. Rear output shaft
14. Differential unit
15. Viscous coupling unit
16. Front output shaft
17. Selector spool
