19 - FUEL SYSTEM - BMW DIESEL (DESCRIPTION): DESCRIPTION AND OPERATION (page 2 of 9)
- Make
- Land Rover
- Model
- Range Rover P38
- Section
- DESCRIPTION AND OPERATION
19
FUEL SYSTEM
NEW RANGE ROVER
2
DESCRIPTION AND OPERATION

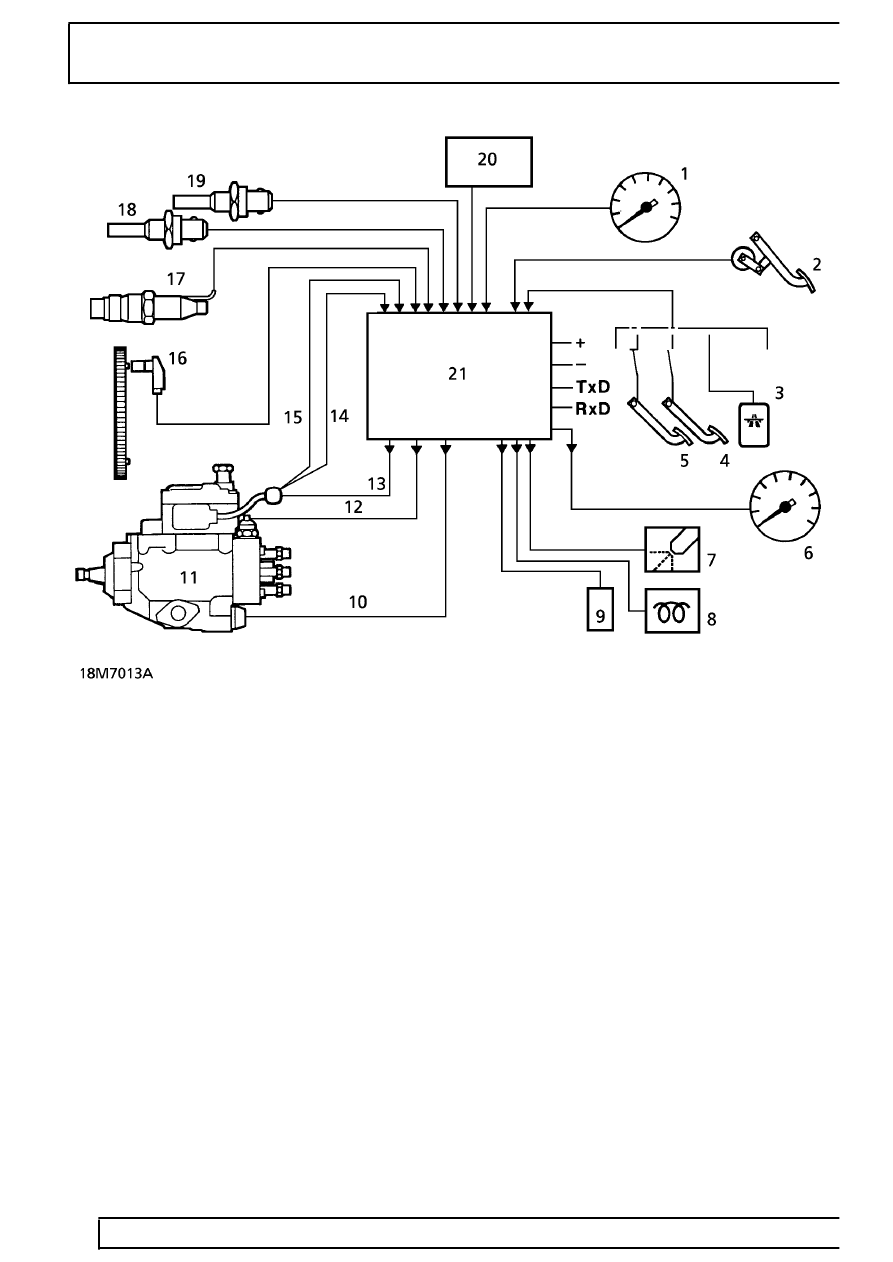

Fuel system inputs/outputs - Vehicles without
EGR
1. Vehicle speed signal
2. Throttle position sensor - linked to accelerator
pedal
3. Cruise control selector (optional)
4. Brake switch
5. Clutch switch
6. Engine speed signal
7. Diagnostic lamp
8. Glow plug lamp
9. Heater time relay
10. Injection timing device
11. Fuel injection pump
12. Stop solenoid
13. Quantity servo control unit
14. Quantity servo control unit potentiometer
15. Fuel temperature sensor
16. Crankshaft position sensor
17. Start of injection sensor
18. Coolant temperature sensor
19. Intake air temperature sensor
20. Manifold absolute pressure sensor
21. Engine Control Module (ECM)
