12 - ENGINE - BMW DIESEL: DESCRIPTION AND OPERATION (page 3 of 10)
- Make
- Land Rover
- Model
- Range Rover P38
12 - ENGINE - BMW DIESELDESCRIPTION AND OPERATION · page 3 of 10
BMW DIESEL
3
DESCRIPTION AND OPERATION

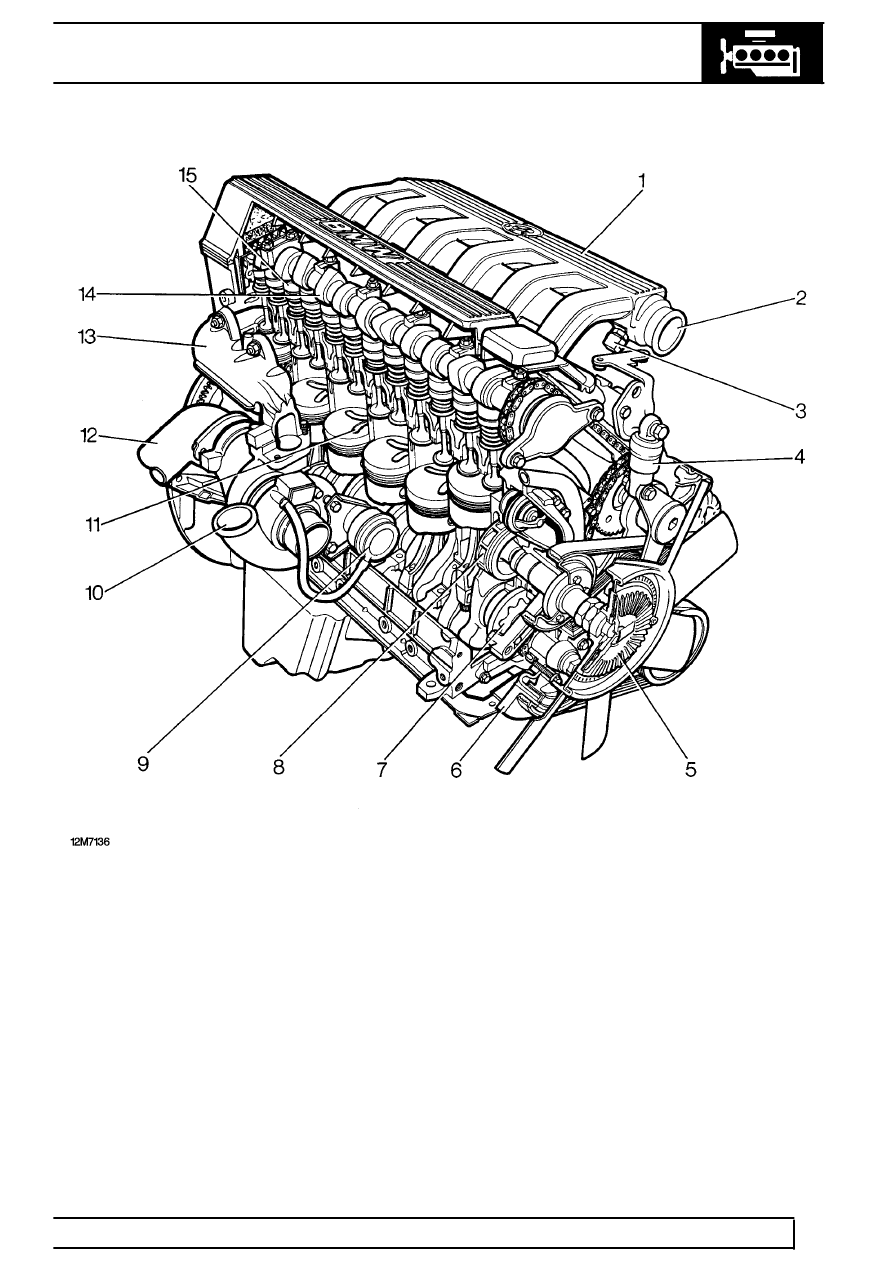

1. Charge air collector
2. Connection from intercooler
3. Intake air temperature sensor groove
4. Hydraulic damper - tensioner roller
5. Radiator fan and viscous coupling
6. Torsional vibration damper
7. Oil pump
8. Water pump
9. Vacuum cell for turbocharger
10. Turbocharger air intake
11. Piston crown, V-pattern
12. Exhaust pipe from turbocharger
13. Exhaust manifold
14. Overhead camshaft
15. Hydraulic tappet
