12 - ENGINE - BMW DIESELDESCRIPTION AND OPERATION · page 2 of 10
12
ENGINE
NEW RANGE ROVER
2
DESCRIPTION AND OPERATION

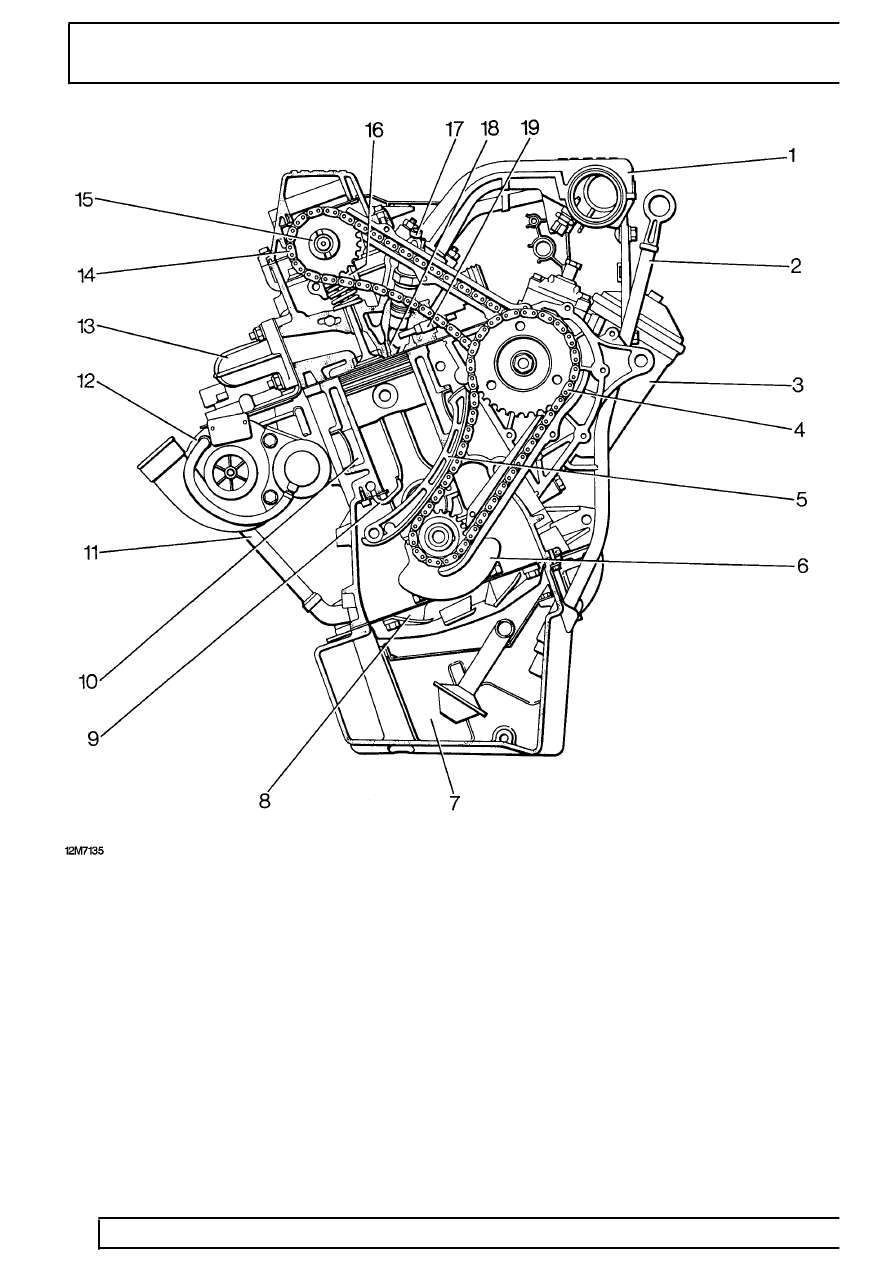

1. Charge air collector
2. Oil dipstick
3. Oil filter
4. Fuel injection pump chain drive
5. Tensioner rail - chain drive
6. Crankshaft
7. Oil sump
8. Reinforcement plate
9. Piston cooling jet
10. Cooling water jacket
11. Oil return from turbocharger
12. Turbocharger
13. Exhaust manifold
14. Camshaft drive chain
15. Camshaft
16. Hydraulic tappet
17. Fuel injector
18. Swirl chamber
19. Glow plug
