AC Compressor

Air Conditioning (A/C) Compressor (82.10.20)

Removal

Published : Feb 17, 2005

1 .

  Disconnect the battery ground cable. For additional information, refer to  (Section 414-00)

2 .

   WARNING: Do not work on or under a vehicle supported only by a jack. Always support the

vehicle on safety stands.

  Raise and support the vehicle.

3 .

Recover the A/C refrigerant. For additional information, refer to

Air Conditioning (A/C) System

Recovery, Evacuation and Charging (82.30.02)

 (Section 412-00)

4 .

  Remove the accessory drive belt. For additional information, refer to  (Section 303-05)

5 .

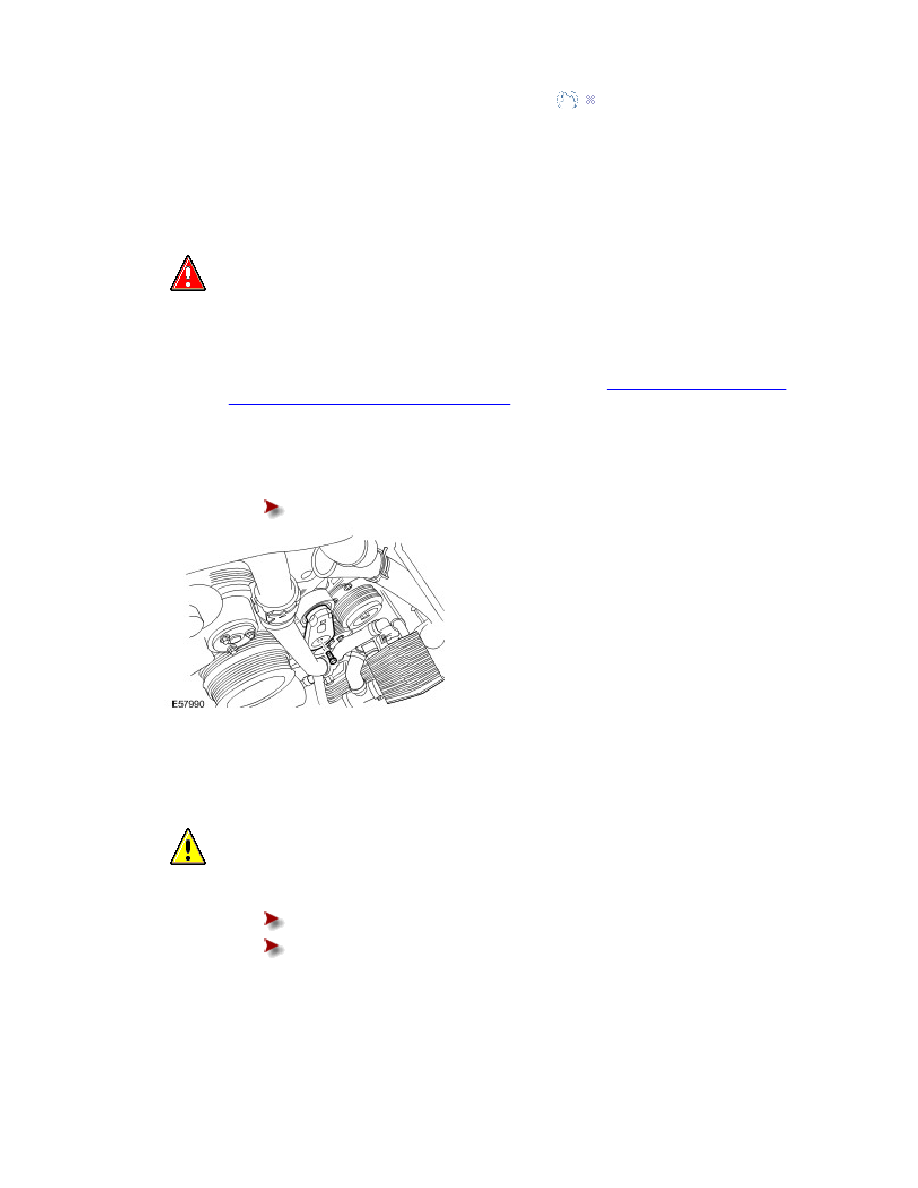

  Remove the accessory drive belt tensioner.

Remove the bolt.

6 .

  Remove the oil level indicator and tube. For additional information, refer to  (Section 303-01)

7 .

  Remove the LH front wheel.

8 .

   CAUTION: Immediately cap all refrigerant lines to prevent ingress of dirt and moisture.

Disconnect the refrigerant lines from the A/C compressor.

Remove the 2 bolts.

Remove and discard the 2 O-ring seals.
