Land Rover LR3/Disco 322 · 206-07 Power Brake Actuation
22 · Brakes

Brake Booster Removal

Make
Land Rover
Model
Discovery LR3/Disco 3
Section
Brake Booster Removal
206-07 Power Brake ActuationBrake Booster Removal · page 1 of 5
background image




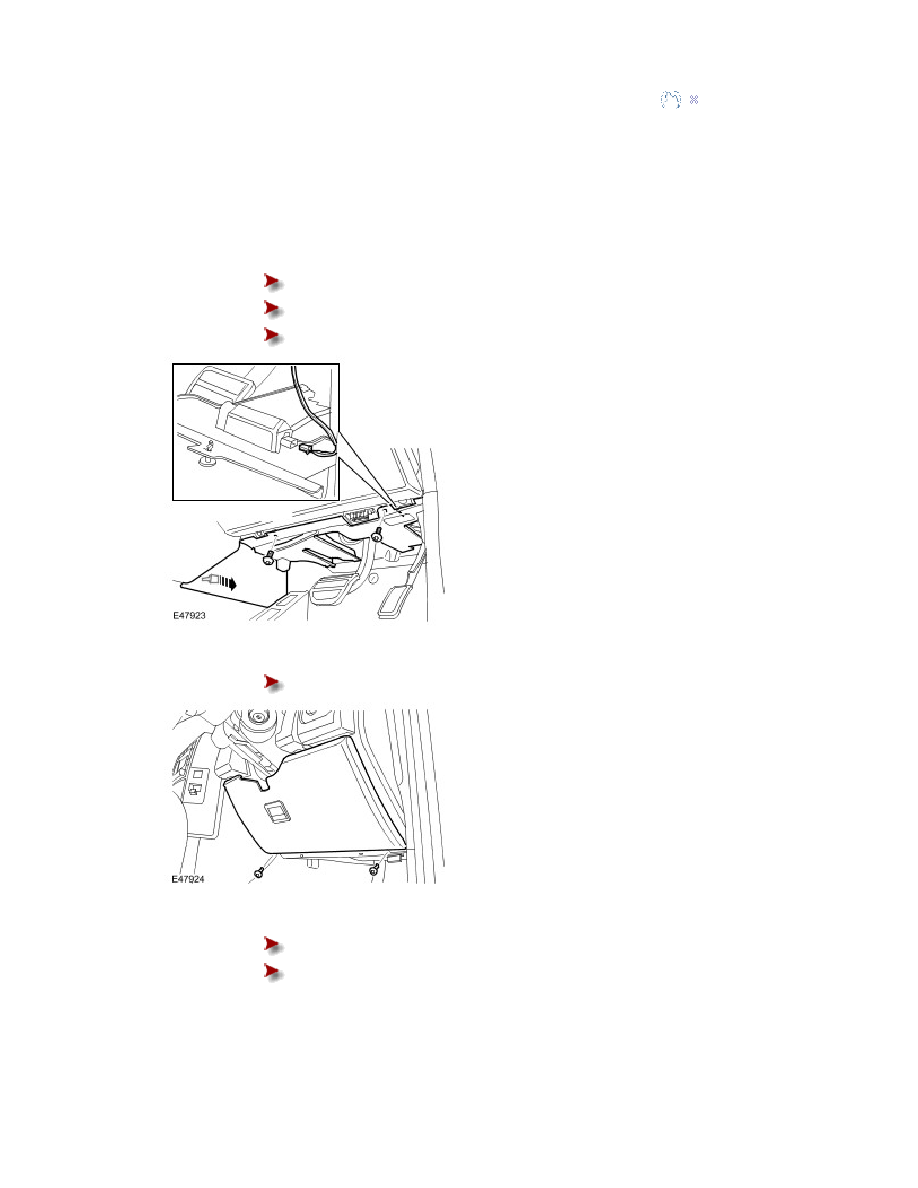

Brake Booster (70.50.01)

Removal

All vehicles





Published : Jul 9, 2004

1 .

  Remove the driver side closing trim panel.



Release the clip.



Remove the 2 screws.



Disconnect the electrical connector.

2 .

  Remove the instrument panel access panel.



Release the 2 screws.

3 .

  Remove the brake pedal buffer.



Remove the 4 Torx screws.



Release the wiring harness clip.
